Spring Driven Gas Welding Hose Reel

$551.00
Dimensions
25' Length

T-Grade Fuel Gas Hose Reel.

* Images may or may not be your exact model. Images are for reference only.

SKU
TW5425OLPT

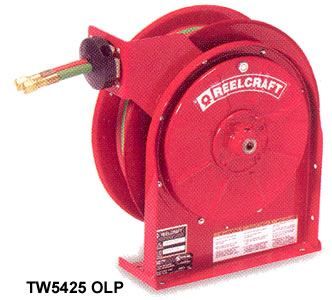

main product photo

COMPLETE WELDING SERIES

Bevel Crank / Spring Retractable Twin Line Gas Welding Hose Reels
Series BA / TW - 1/4", 3/8" I.D.
FEATURES
Designed to handle various lengths of oxygen/
acetylene or T-grade twin line hose
Double-sealed, "O" rings prevent leakage
Swivel inlets are both permanently identified with
machined grooves on the gas side to assure proper
installation
APPLICATIONS
• Workshop • Cranes
• Industrial • Bridge Builders
• Welding Trucks • Crane Riggers
• Automotive • Mobile Service
• Construction Equipment • Agricultural
• Railroads • Mining (above ground)
Most Compact
Ideal for locations where space is limited
high volume hose reel exclusive hose reel
"T" GRADE FUEL GAS REELS
"T" grade hose reels are used for a wide
variety of gases such as mapp gas, pro-
pane gas, natural gas and fuel gases.
When ordering any welding hose reels you
must specify the type of gas being used.
To order "T" Grade reels, add a suffix "T"
to the TW Models.
Example - TW 5425 OLPT.
High Volume
Exclusive 3/8" hose
Dual welding, spring driven for high volume
of gas		 The only model in its class that offers
3/8" hose
Available in T grade only
NOTE: TW7400 OLP(T), TW84000 OLPT, and TW86000 OLPT are listed to UL 1351
Size Index
1 2 3 4 5
in mm in mm in mm in mm in mm
A
20 1/4
514
20 1/4
514
25 3/8
645
15 5/8
397
21 5/8
550
B
19 3/4
502
19 3/4
502
24
610
6
152
12
305
C
7 7/8
200
7 7/8
200
10
254
9 3/4
248
15 3/4
400
D
3 7/8
98
3 7/8
98
6
152
11
280
17
432
E
7 3/8
187
8 1/2
216
12 1/4
311
-
-
-
-
Series TW5000 reels have four 5/16" (8 mm) diameter mounting holes.
Length with crank handle removed is 17 3/4" (451 mm).

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

PRICING
Dual swivel is an exclusive Reelcraft design
The aluminum dual swivel body is hard coated for wear resistance. This assures positive separation
of gases due to its unique design. Available with Series TW5000, TW7000, and TWHD70000 reels.
MODEL (with hose) WGT. PRESS. HOSE CAPACITY PRICE MODEL (w/o hose) WGT. PRESS. PRICE
I.D. LGTH.
lbs psi in ft lbs psi
WELDING REELS: "T" Grade Fuel Gas
26
200
1/4
25
$551
50
200
1/4
50
$759
43
200
$670
71
200
1/4
85
$980
55
200
1/4
60
$820
101
200
1/4
100
$1,481
81
200
$1,033
90
200
3/8
50
$1,699
86
200
$1,176
99
200
3/8
75
$1,735
86
200
$1,176
SERIES 30000 HAND CRANK
1/4
125
-
50
200
$1,205
SERIES 30000 HAND CRANK
1/4
250
-
57
200
$1,232
Acetylene and fuel gas (red) inlet 1/4" FPT / oxygen (green) inlet 1/4" FPT. 9/16-18 models above are B size.
Acetylene/fuel gas side has a LH thread and the oxygen side has a RH thread. Maximum temperature 150 °F (65 °C).
Maximum temperature 150 °F (65 °C). *Bevel crank model.

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

HOSE INLET CONNECTING FITTINGS - OPTIONAL PRICING
MODEL NO. INLET CONNECTION FITTINGS PRICE
90° S300090 ACETYLENE Bsize 9/16 - 18 LH (M) x 1/4" NPT (M)
$66.70
S300091 OXYGEN Bsize 9/16 - 18 RH (M) x 1/4" NPT (M)
$66.70
Straight 261371 OXYGEN Bsize 9/16 - 18 RH (M) x 3/8" NPT (M)
$31.60
261372 ACETYLENE/fuel gas - Bsize 9/16 - 18 LH (M) x 3/8" NPT (M)
$31.60
Hose supplied on oxygen/acetylene reels is twin-Siamese type meeting R.M.A. and C.G.A. type V.D., grade RM specifications.

ADJUSTABLE HOSE BUMPERS
Adjustable hose bumpers are solid molded rubber assuring a long life and
nonslip grip. Hose bumpers allow the desired length of hose to be
permanently stored outside the reel. Hose bumpers are included on the reels
purchased with hose. Reels purchased without hose do not include the hose
bumper. When ordering, advise the part number, reel model and the hose ID
and OD
hose bumpers
adustable hose bumpers

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

PRICING
Model No. Hose
Outside Dia.		 Hose
ID		 Use with Reel Series Dia.
B-C-E		 Dia. D Wgt.
(lbs.)		 Price
8-HR1004-3 1/4 Twin Welding 1/4 TW5400 / TW7400 / TW84000 3 1 1/4 .42
$18.72
600521 3/8 Twin Welding 3/8 TH or TW86000 3 1/2 2 .80
$39.78

INLET HOSE ASSEMBLIES
The twin welding, T-grade hose for mapp, propane, natural, and fuel gas.
Be sure the working pressure required does not exceed the rating listed
in the chart.
S601031-2
"T" GRADE TWIN WELDING
1/4" ID X 2 FEET
200 PSI WORKING PRESSURE
601031-50

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

PRICING INLET HOSE ASSEMBLIES
Model No. Hose
ID		 Lgth.
(ft.)		 Pressure
(psi)		 NPFT (M)
Fittings (in.)		 Use with Reel Series Wgt.
(lbs.)		 Price
'T' GRADE TWIN WELDING INLET HOSES
S601031-2 1/4 2 200 ** TW 5000 T / TW 7000 T 1.00
$77.22
S601031-4 1/4 4 200 ** TW 5000 T / TW 7000 T 1.50
$90.09
S601031-6 1/4 6 200 ** TW 5000 T / TW 7000 T 2.00
$111.15
*Male x Female Welding / **Female Welding both ends.
CAUTION: Be sure working pressure required does not exceed above rating. Misapplication can result in serious injury.
PRICING HOSE ASSEMBLIES
Model No.
I.D. & O.D.
Length
Pressure
End Fittings
Weight
Price
TWIN WELDING Oxygen/acetylene only (RM Grade) - LH/RH(F)
1/4
60
200
9/16-18
13.3
$227
TWIN WELDING Mapp, propane, natural and fuel gas (T-grade) - LH/RH(F)
1/4
25
200
9/16-18
6.5
$127.50
1/4
50
200
9/16-18
12.11
$228.20
1/4
60
200
9/16-18
14.41
$266.80
1/4
100
200
9/16-18
24.21
$444.60
Advise product to be handled, maximum temperature and pressure fitting size when ordering.
Caution: Be sure working pressure required does not exceed above ratings.
