HANDRAILS
 LIGHTING GRIDS
STORE FIXTURES
PLAYGROUNDS
GUARD RAILS
SET DESIGN
& PROPS |
|||
 |
 |
||
|
Aesthetic look and design |
|||
|
Light weight |
|||
|
Corrosion resistant |
|||
|
Large set screws resist thread
stripping |
|||
|
Low long term maintenance |
|||
|
Available for Schedule 40
Pipe Sizes 1"-2" |
|||
|
Recessed Set Screws for a Smooth Look |
|||
|
Cost Effective Alternative
to Welding |
|||
|
|
|||
|
WATER
TREATMENT FACILITIES
CORROSIVE ENVIRONMENTS
INDUSTRIAL/COMMERCIALRETAIL & RESTAURANT DESIGN
MUNICIPAL
INSTITUTIONAL |
|||
|
|
|||
| KEE
LITE fittings are made from high-grade Aluminum Silicon Magnesium alloy
to provide you with a lightweight, corrosion resistant and strong alternative for fabrication of pipe structures. Kee Lite fittings offer you flexibility, to be used for a variety of applications from contemporary to industrial; your imagination is the only limitation you have. |
| Because
Kee Lite fittings can be easily installed with a hex key and pipe cutters,
there is no need to weld, thread or drill, saving you both time and money. Kee Lite is securely locked into place using recessed setscrews that provide a smooth look to your rail system. |
|
Click
on button or text to jump to the product you desire.
|
Contact us for special lengths
| Back to Top | |||||
 |
 |
||||
| Designed
to give a 90° butt joint between two pipes. Frequently used for the joint between end uprights and the middle rail where the site is straight and level. Also used for base ties on racking. This fitting cannot be used where the pipe through the sleeve 'A' is required to be joined within the fitting. |
|||||
|
|||||||||||||||||||||||||||||||||||||||
| Back to Top | ||||
 |
 |
|||
| Designed
to give an in-line joint between tubes of the same size. Frequently used to allow full pipes to be used in railing applications. Note: It is not advisable
to join the upper and |
||||
|
||||||||||||||||||||||||||||||||
| Back to Top | |||||
 |
 |
||||
|
A 90-degree
elbow joint, most frequently used as
an end joint for the top rail of safety railing on a level site. |
|||||
|
|||||||||||||||||||||||||||||||||||||||
| Back to Top | ||||
 |
 |
|||
| Used
to form variable angle joints between 60 and 200 degrees. Note: Type L19 fittings are normally used in pairs, and are sold, priced, and weighed as such. |
||||
|
|||||||||||||||||||||||||||
| Back to Top | ||||
 |
 |
|||
| A
90-degree corner joint most frequently used for the top rail of safety railing. It can also be considered for the corner joint of benches, work tables, and other rectangular structures. |
||||
|
||||||||||||||||||||||||||||||||
| Back to Top | ||||
 |
 |
|||
| Most
frequently paired with Type L20 to give a 90-degree corner joint for the middle rail of safety-railing and other rectangular structures. The upright passes through the fitting. |
||||
|
||||||||||||||||||||||||||||||||
| Back to Top | |||||
 |
 |
||||
| Most
commonly used as the 90 degree joint between the top rail and an intermediate upright on safety railing. As there are two socket set screws in the sleeve, this Kee Lite fitting can be used where a join is required in the horizontal pipe. The Type L10 fitting can be used as an alternative when a join in the pipe is not required. |
|||||
|
|||||||||||||||||||||||||||||||||||||||||||||
| Back to Top | ||||
 |
 |
|||
| Usually
paired with Type L25 to give a 90° joint between the middle rail and an inter- mediate upright on safety railing. The upright passes through the fitting. |
||||
|
|||||||||||||||||||||||||||||||||||||||
| Back to Top | ||||
 |
 |
|||
| This
adjustable fitting is most frequently used for struts and braces. It can be used at any selected angle between 30° and 60°. Suitable for connecting an angled staircase rail to a vertical upright. |
||||
|
|||||||||||||||||||||||||||||
| Back to Top | ||||
 |
 |
|||
| This
adjustable fitting can be used for railing on staircases between the mid-rail and intermediate upright which is required to remain vertical. It can be used at any selected angle between 30° and 45°. |
||||
|
|||||||||||||||||||||||||
| Back to Top | ||||
 |
 |
|||
| Most
frequently used to tie uprights with hori- zontal pipe in three directions, all at 90 degrees to the upright. The upright passes through the fitting. |
||||
|
|||||||||||||||||||||
| Back to Top | ||||
 |
 |
|||
| Designed
to give a 90 degree offset crossover joint. Frequently used on safety railing, where, to reduce cost by minimizing the pipe cuts, a continuous horizontal rail is used. Pipe cannot be joined within this Kee Lite fitting. It may be also used to give intermediate levels on racks. |
||||
|
|||||||||||||||||||||||||||
| Back to Top | ||||
 |
 |
|||
| Used
on racking to join horizontal carrying rails to the upright, leaving the socket to take a hori- zontal tie across the section. For shelved racking, it is usual to have the horizontal pipe outside the upright. On pallet racking, it is preferable to have the carrying rails inside the upright. |
||||
|
||||||||||||||||||||||||
| Back to Top | |||||
 |
 |
||||
| Complete
combination fitting. |
|||||
|
||||||||||||||||||||||
| Back to Top | ||||
 |
 |
|||
| The female part of a swivel fitting combination. | ||||
|
||||||||||||||||||||||||||||||||||||||||||
| Back to Top | ||||
 |
 |
|||
| The
male part of a swivel fitting combination. This fitting can also be used to attach flat panels to tubular structures. |
||||
|
||||||||||||||||||||||||||||||||||||||||||
| Back to Top | ||||
 |
 |
|||
| Complete
combination fitting. Reducing combinations of Type LC51 are available, Size 7 and 8. |
||||
|
|||||||||||||||||||||||||||
| Back to Top | ||||
 |
 |
|||
| One
half of a combination fitting. This can also be used for attaching flat panels to tubular structures. |
||||
|
|||||||||||||||||||||||||||||||||||||||||||||||
| Back to Top | ||||
 |
 |
|||

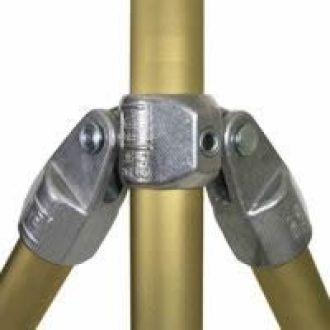

| Complete
combination fitting. Reducing combinations of Type LC52 are available, Size 7 and 8. |
||||
|
|||||||||||||||||||||||||||
| Back to Top | ||||
 |
 |
|||
| One
half of a combination fitting. This can also be used for attaching flat panels to tubular structures. |
||||
|
|||||||||||||||||||||||||||||||||||||||||||||||
| Back to Top | ||||
 |
 |
|||
| A
swivel fitting designed as an in-line variable angle connection, adjustable from 45° to 200°. |
||||
|
|||||||||||||||||||||||||
| Back to Top | ||||
 |
 |
|||
| A
swivel fitting for attachment of angled pipe to a flat setting. Warning: This fitting
is not recommended for |
||||
|
| Back to Top | ||||
 |
 |
|||
| The
male part of a swivel fitting for attaching angled tubing to flat surfaces. |
||||
|
|||||||||||||||||||||||||||
| Back to Top | ||||
 |
 |
|||
| This
flange, with holes provided for counter- sunk head fixing screws only, is used on structures where the fixing is positional only. Frequently used as a wall-fixing bracket. Type L152 for a square based alternate to this fitting. Warning: It is not
recommended for use as a |
||||
|
|||||||||||||||||||||||||||||||||||||||||||||||
| Back to Top | ||||
 |
 |
|||
| Ideal
when a structural fixing is required. Type L62 should always be used to fix down guard- railing and balustrades. The holes are of suf- ficient diameter to give a good fixing with either a mechanical or chemical anchor. The two socket set screws in the vertical socket give greater stability to the upright. The fixing holes in the flanges should be inline with the applied load. |
||||
|
|||||||||||||||||||||||||||||||||||||||||
| Back to Top | ||||
 |
 |
|||
| Side
palm fixing for guardrailing and balust- rading to walls, parapets, steps and ramps. The upright cannot drop throught the socket. Warning: If the upright
is required to pass |
||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Back to Top | ||||
 |
 |
|||
| The
Type L69 fitting has been designed for guardrailing and balustrading applications and provides the added benefit of attaching a kick plate to the base. The base plate holes are of sufficient diameter to allow for attach- ment with either a mechanical or chemical anchor, the side plates have slotted holes to allow for a degree of sideways movement for ease of installation. |
||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
| Back to Top | ||||
 |
 |
|||
| A
metal drive-in plug, which is difficult to remove when installed. For proper insertion, a rubber mallet should be used. |
||||
|
||||||||||||||||||||||||||||||||
| Back to Top | ||||
 |
 |
|||
| PATENT
PENDING An internal swivel fitting, designed to accom- odate varying angles on handrailing to stair- cases, ramps, or bracing. Used in conjunction with types L10, L15, L25, or L45 it eliminates the need for specially drilled angle fittings. |
||||
|
|||||||||||||||||||||||||||||
| Back to Top | ||||
 |
 |
|||
| Type
L148 is a structural base fixing used to fix down guardrailing and balustrades. This fitting is available with 2 or 4 fixing holes which are of sufficient diameter to give a good fixing with either a mechanical or chemical anchor. The two socket set screws in the vertical socket give greater stability to the upright. It is recommended that the fixing holes in the flanges should be inline with the applied load. |
||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||
| Back to Top | ||||
 |
 |
|||
| A
heavy duty, four point fixing, base flange. Ideal when a structural fixing is required. |
||||
|
|||||||||||||||||||||||||||
| Back to Top | ||||
 |
 |
|||
| A four point fixing base or wall flange. | ||||
|
|||||||||||||||||||||||||||||||||||||||||||||||
| Back to Top | ||||
 |
 |
|||
| Designed
to provide attachment for a smooth handrail. The fitting swivels allowing the handrail to be placed at any angle. Installation instruc- tions are available, contact us for the information. |
||||
|
|||||||||||||||||||||||||||||||||
| Back to Top | ||||
 |
 |
|||
| This
fitting is designed for side palm fixing of uprights to steel channels, walls, parapets, steps and ramps. The upright cannont drop through the socket. |
||||
|
|||||||||||||||||||||||||||
|
Kee Lite Fittings are made from high grade Aluminum Silicon Magnesium Alloy |
Pipe Reference Chart | ||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||
|
Recommended set screw torque is 29 lbs./ft. |
|||||||||||||||||||||||||||||
|
Minimum slip load capacity on Aluminum Schedule 40 pipe: 1,700 lbs. (safety factor = 2) |
|||||||||||||||||||||||||||||
|
Minimum slip load capacity on steel Schedule 40 pipe: 2,000 lbs. (safety factor = 2) |
|||||||||||||||||||||||||||||
| *
Norminal Bore is an arbitrary dimension because the bore varies with the wall thickness of the pipe. Pipe sizes are shown in the table and in the drawings below. |
|||||||||||||||||||||||||||||
|
Larger set screws are designed to resist thread stripping |
|||||||||||||||||||||||||||||
| Pipe For Your Structure | |||||||||||||||||||||||||||||
|
Minimum Material UTS: 33,000 PSI |
|||||||||||||||||||||||||||||
| Structures
built using Kee Lite Fittings will require either steel or aluminum pipe. We suggest using Schedule 40 Anodized Aluminum Pipe, Alloy 6105 - T5/6 which we have in stock. Pipe is available for fittings sizes 6, 7, 8, and 9 in either 24 foot or 12 foot long sections. We can even cut pipe to your exact requirements. |
|||||||||||||||||||||||||||||
|
All Kee Lite Fittings undergo independent testing by TÜV |
|||||||||||||||||||||||||||||
| Kee
Lite Aluminum fittings are designed to suit Schedule 40 (aluminum and steel), pipe sizes 1" - 2". |
|||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||
