PUSH BUTTON STATIONS
|
|
|
|
|
|
|
|
|
|
|
|
L SERIES PENDANT PUSH BUTTON STATIONS
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
L2-S
|
|
L4-S,
L4-D
|
|
L6-S,
L6-D
|
|
L8-S,
L8-D
|
|
L10-S,
L10-D
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
STANDARD FEATURES
|
Duct-O-Wire L Series Pendant Stations are available in four, six, eight, and ten-button configurations to fit a wide
variety of applications... from the simplest two-motion cranes to three-motion cranes equipped with multiple switches
and accessories. Each station is available in a standard "Slim" or an optional "Deep" profile for extra wiring and
accessory space. They may be purchased as complete assemblies with switches and accessories pre-installed,
or you may build your own station by purchasing individual components and assembling them yourself. |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Standard L Series Pendant Station Features Include: |
|
|
 Multi-Step Cord Grip for 4 to 24 Conductor Cable |
Strain Relief Hook and Cable Clamp Set |
| NEMA 1, 3, 4, 4X K Series |
Large Variety of Accessory Switches Available |
| UL Listed and CSA Approved |
Replaceable Neoprene Boots |
| Slim Back Profile (S) for Ergonomic Look & Feel |
Easy to Read Legend Plates |
| Deep Back (D) Profile for Extra Wiring Space |
Polypropylene Construction |
|
|
|
 |
|
|
|
|
| Model No. |
Enclosure Type |
W Width |
D Depth |
L Length |
Wt. # |
Cable Range |
| L2-S |
2 Button Shallow |
3.13" |
2.00" |
6.88" |
0.56 |
.640" - 8.90" |
| L4-S |
4 Button Shallow |
3.13" |
2.00" |
8.25" |
0.64 |
.640" - 8.90" |
| L6-S |
6 Button Shallow |
3.13" |
2.00" |
10.50" |
0.74 |
.640" - 8.90" |
| L8-S |
8 Button Shallow |
3.13" |
2.00" |
12.88" |
0.88 |
.640" - 8.90" |
| L10-S |
10 Button Shallow |
3.13" |
2.00" |
15.25" |
0.96 |
.640" - 8.90" |
| L4-D |
4 Button Deep |
3.13" |
2.63" |
8.25" |
0.70 |
.640" - 8.90" |
| L6-D |
6 Button Deep |
3.13" |
2.63" |
10.50" |
0.80 |
.640" - 8.90" |
| L8-D |
8 Button Deep |
3.13" |
2.63" |
12.88" |
0.92 |
.640" - 8.90" |
| L10-D |
10 Button Deep |
3.13" |
2.63" |
15.25" |
1.04 |
.640" - 8.90" |
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
PRICING FOR L SERIES PENDANT PUSH BUTTON STATIONS
|
| Model No. |
Enclosure |
Switches |
Price |
| L4-S-1 |
L4-S 4 Button |
(2) LS-1 |
$123.00
|
| L4-S-1A |
L4-S 4 Button |
LS-A & LS-1 |
$130.00
|
| L4-S-1M |
L4-S 4 Button |
LS-M & LS-1 |
$130.00
|
| L4-S-2 |
L4-S 4 Button |
(2) LS-2 |
$171.00
|
| L4-S-2A |
L4-S 4 Button |
LS-A & LS-2 |
$153.00
|
| L4-S-2M |
L4-S 4 Button |
LS-M & LS-2 |
$153.00
|
| L6-S-1 |
L6-S 6 Button |
(3) LS-1 |
$181.00
|
| L6-S-1A |
L6-S 6 Button |
LS-A & (2) LS-1 |
$189.00
|
| L6-S-1M |
L6-S 6 Button |
LS-M & (2) LS-1 |
$189.00
|
| L6-S-2 |
L6-S 6 Button |
(3) LS-2 |
$255.00
|
| L6-S-2A |
L6-S 6 Button |
LS-A & (2) LS-2 |
$238.00
|
| L6-S-2M |
L6-S 6 Button |
LS-M & (2) LS-2 |
$238.00
|
| L8-S-1A |
L8-S 8 Button |
LS-A & (3) LS-1 |
$286.00
|
| L8-S-1M |
L8-S 8 Button |
LS-M & (3) LS-1 |
$286.00
|
| L8-D-1E |
L8-D 8 Button |
LS-STMM & (3) LS-1 |
$369.00
|
| L8-D-2 |
L8-D 8 Button |
(4) LS-2 |
$389.00
|
| L8-D-2A |
L8-D 8 Button |
LS-A & (3) LS-2 |
$359.00
|
| L8-D-2M |
L8-D 8 Button |
LS-M & (3) LS-2 |
$359.00
|
| L8-D-2E |
L8-D 8 Button |
LS-STMM & (3) LS-2 |
$442.00
|
| L10-S-1A |
L10-S 10 Button |
LS-A & (4) LS-1 |
$378.00
|
| L10-S-1M |
L10-S 10 Button |
LS-M & (4) LS-1 |
$378.00
|
| L10-D-2A |
L10-D 10 Button |
LS-A & (4) LS-2 |
$496.00
|
| L10-D-2M |
L10-D 10 Button |
LS-M & (4) LS-2 |
$496.00
|
|
| All PPS switches & accessories fit all "L" Enclosures. |
| All "L" switches & accessories fit all PPS Enclosures. |
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
SLIM PROFILE ENCLOSURES
|
| Model No. |
Description |
Price |
| L2-S |
2-Button Slim Multi-Step Cord Grip |
$54.00
|
| L4-S |
4-Button Slim Multi-Step Cord Grip |
$72.00
|
| L6-S |
6-Button Slim Multi-Step Cord Grip |
$105.00
|
| L8-S |
8-Button Slim Multi-Step Cord Grip |
$176.00
|
| L10-S |
10-Button Slim Multi-Step Cord Grip |
$242.00
|
|
|
|
DEEP PROFILE ENCLOSURES
|
| Model No. |
Description |
Price |
| L4-D |
4-Button with Deep Multi-Step Cord Grip |
$77.00
|
| L6-D |
6-Button Deep with Multi-Step Cord Grip |
$110.00
|
| L8-D |
8-Button Deep with Multi-Step Cord Grip |
$189.00
|
| L10-D |
10-Button Deep with Multi-Step Cord Grip |
$262.00
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
|
SWITCHES AND ACCESSORIES
|
| Model No. |
Description |
Price |
| *LS-STMM-A |
Emergency Stop* |
$500.00
|
| LS-6A1 |
Push-On/Push-Off Switch |
$42.20
|
| *LS-6 |
Toggle Switch On/Off |
$108.00
|
| LS-6A |
Push-On/Push-Off Switch |
$62.00
|
| LS-MS |
Momentary Switch |
$51.00
|
| LS-MS-LED |
Momentary start/stop inserts and switch |
$129.00
|
| *LS-STMM |
Emergency Stop |
$117.00
|
| LS-PL |
Neon Pilot Light (Small for Accessory Area Only, Specify: Red, Green or Amber) |
$62.00
|
| *LS-LED |
110-Volt Protected LED (Specify: Red, Green, Blue, Amber or White) |
$131.00
|
| LS-H |
Horn Switch (for Accessory Area only) |
$51.00
|
| *LS-7 |
Key Switch |
$136.00
|
| LS-11 |
Two-Way Selector Switch (AB) |
$98.00
|
| LS-12 |
Three-Way Selector Switch (A-Both-B) |
$98.00
|
| *LS-13 |
Three-way Selector (Switch Spring Return to Center) |
$107.00
|
| LS-16 |
Three-way Selector Switch (A-Off-B) |
$98.00
|
| **LS-18 |
Three-way Selector Switch (Switch Spring Return to Right) |
$107.00
|
|
|
* - Spring Return to Center
** - Spring Return to Right |
|
|

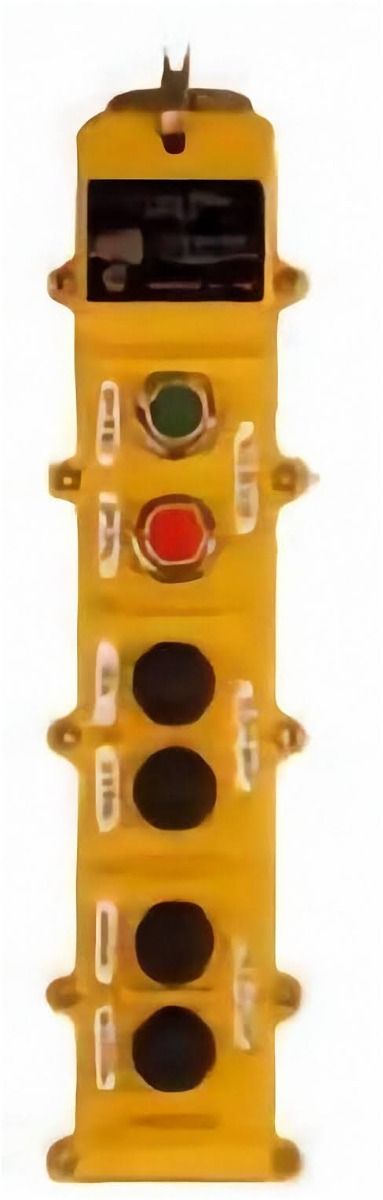

J Series Pendant Stations - Polypropylene Enclosures
|
|
One-Speed through Five-Speed Control plus Accessories
|
|
|
|
|
|
|
|
|
J-6
J-8
J-10 |
Six-Button
Eight-Button
Ten-Button |
|
|
|
|
|
|
Each enclosure includes a standard package
of legend plates, cord grip, strain relief thimble
and neoprene boots. The top accessory area
on these enclosures will accept one two-
button insert or two single buttons. |
|
|
|
|
|
• Durable and lightweight polypropylene
enclosure
• Bright yellow for visibility and safety
• High resistance to solvents and impact
• UL Listed and CSA Approved
• NEMA 1, 3, and 12
• Easy to read legend plates |
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
| Model No. |
Description |
Price |
| Complete Pendant Stations with Standard Motion Switches |
|
Each station includes switches listed plus a standard package of legend plates, cord grip, strain
relief bracket and Neoprene boots. Order On/Off switches separately by the catalog number listed
below under Accessories and Replacement Parts.
|
| J6-2-1A |
2-Motion-All One-Speed |
$276.00
|
| J6-2-3A |
2-Motion-All Three-Speed |
$280.00
|
| J6-2-5A |
2-Motion-All Five-Speed |
$307.00
|
| J8-3-1A |
3-Motion-All One-Speed |
$358.00
|
| J8-3-3A |
3-Motion-All Three-Speed |
$365.00
|
| J8-3-5A |
3-Motion-All Five-Speed |
$405.00
|
| J10-4-1A |
4-Motion-All One-Speed |
$440.00
|
| J10-4-3A |
4-Motion-All Three-Speed |
$449.00
|
| J10-4-5A |
4-Motion-All Five-Speed |
$502.00
|
| Complete Pendant Stations with Mechanical Interlock Motion Switches |
| J6-2-1B |
2-Motion-All One-Speed |
$320.00
|
| J6-2-3B |
2-Motion-All Three-Speed |
$325.00
|
| J6-2-5B |
2-Motion-All Five-Speed |
$351.00
|
| J8-3-1B |
3-Motion-All One-Speed |
$425.00
|
| J8-3-3B |
3-Motion-All Three-Speed |
$431.00
|
| J8-3-5B |
3-Motion-All Five-Speed |
$471.00
|
| J10-4-1B |
4-Motion-All One-Speed |
$529.00
|
| J10-4-3B |
4-Motion-All Three-Speed |
$538.00
|
| J10-4-5B |
4-Motion-All Five-Speed |
$591.00
|
| Enclosures |
|
Each enclosure includes a standard package of legend plates, cord grip, strain relief
bracket and Neoprene boots. The top accessory area on these enclosures will accept
any two-button inserts or any two accessories.
|
| J-6 |
Six-Button |
$178.00
|
| J-8 |
Eight-Button |
$211.00
|
| J-10 |
Ten-Button |
$245.00
|
| Two-Button Inserts |
|
PB Switch Rating: 1 Amp per Contact, 125VAC, NEMA 4.
|
| PB-1A |
One-Speed Insert |
$48.90
|
| PB-1B |
One-Speed Insert with Mechanical Interlock |
$72.00
|
| PB-3A |
Three-Speed Cumulative Insert |
$52.00
|
| PB-3B |
Three-Speed Cumulative Insert with Mechanical Interlock |
$74.00
|
| PB-5A |
Five-Speed Cumulative Insert |
$65.00
|
| PB-5B |
Five-Speed Cumulative Insert with Mechanical Interlock |
$87.00
|
| PB-ST |
Momentary On/Off with Red and Black Neoprene Boots |
$74.00
|
| Accessories and Replacement Parts |
|
(All switches Rated NEMA 4 Except as Noted)
|
| RPS-7X |
Key Switch (NEMA 4) |
$595.00
|
| RPS-11 |
Two-way Selector Switch, Function A, B |
$329.00
|
| RPS-10 |
Three-way Selector Switch, Function A, B, Both |
$438.00
|
| RPS-12 |
Three-way Selector Switch, Function A, Both, B |
$312.00
|
| RPS-MS |
Momentary Horn Button with Black Neoprene Boot |
$33.40
|
| PB-STA |
Momentary Start/Stop with Two Buttons (One Hole, NEMA
1 and 2) |
$173.00
|
| PB-STB |
Momentary Start/Stop with Two Buttons (One Hole) |
$373.00
|
| PB-STMM-E |
E-Stop (1-N.C.) |
$286.00
|
| RPS-MG |
Wire Mesh Grip |
$278.00
|
| RPS-MG-C |
Complete Wire Mesh Cord Grip (including connector and
bushing) 1-1/4" NPS (specify cable O.D.) |
$289.00
|
| PBW-3 |
Black Neoprene Boot |
$6.70
|
| PBW-3R |
Red Neoprene Boot |
$7.80
|
|
|
 |
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
| Dimensions and Weights |
Enclosure
Model Number |
Dimensions - Inches |
Weight
(Lbs) |
Accommodates Cable
Diameter (Inches) |
| Width |
Depth |
Length |
| J-6 |
3 3/4 |
3 3/4 |
16 |
2 1/2 |
.688 - 1.250 |
| J-7 |
3 3/4 |
3 3/4 |
18 |
2 5/8 |
.688 - 1.250 |
| J-8 |
3 3/4 |
3 3/4 |
20 |
3 |
.688 - .1.250 |
| J-9 |
3 3/4 |
3 3/4 |
21-3/4 |
3 1/4 |
.688 - 1.250 |
| J-10 |
3 3/4 |
3 3/4 |
24 |
3 1/2 |
.688 - 1.250 |
| J-11 |
3 3/4 |
3 3/4 |
25-3/4 |
3 3/4 |
.688 - 1.250 |
|
|
|
|
|
|
|
| STATION FEATURES: |
|
|
|
|
|
|
|
RPB Series Stations are housed in sturdy
steel-reinforced rubber enclosures with all internal
metallic parts electrically grounded. |
|
|
|
|
| Bright Yellow Finish for Easy Visibility |
|
|
| Pre-Wired Stations Available from Factory |
|
|
| Two-Piece Enclosure Simplifies Field Wiring |
|
|
|
J and K Series Stations are housed in durable,
lightweight polypropylene enclosures which provide
high resistance to solvent and impact damage.
Stainless steel cover screws available for outdoor use. |
|
| Cord Grip and Bracket for Strain Relief Cable |
|
|
| Easy-to-Read Snap-In Adhesive Name Plates |
|
|
| NEMA 1, 3, 4 and 12 |
|
|
RPB and K Series Switches are UL Listed and CSA
Approved. J Series switches are CSA Approved. |
|
|
|
 |
|
|
| Push Button Operator Instruction and Warning Label available. |
|
|
|
|
|
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths Click the button of the item you wish to purchase. Contact us for special lengths
|
| BW Series Dimensions and Weight (Enclosure) |
| Model No. |
Dimension (In) |
Weight Lbs. |
Cord
Grip (NPT)* |
Prices |
| Width |
Depth |
Length |
| BW92Y |
2-1/8 |
2-1/2 |
4-1/4 |
3/4 |
~ |
$136.00 |
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
ACCESSORY SWITCH AND MOTION INSERT SELECTION AND PRICING
|
|
|
| Locate Pendant Series and select the available Accessory or Motion Insert(s) available. |
|
|
 |
|
SINGLE SPEED INSERTS
|
| Model No. |
Description |
J |
L |
PSW
RPS |
Price |
|
|
One Speed |
X |
|
X |
$48.90
|
|
|
One Speed |
X² |
|
X² |
$72.00
|
|
|
X¹ = Requires 1 each per motion. |
|
X²= Mechanical Interlocking |
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
|
|
THREE AND FIVE SPEED INSERTS
|
| Model No. |
Description |
J |
L |
PSW |
Price |
|
|
Three Speed |
X |
|
X |
$52.00
|
|
|
Three Speed |
X² |
|
X |
$74.00
|
|
|
Five Speed |
X |
|
X |
$65.00
|
|
|
Five Speed |
X² |
|
X |
$87.00
|
|
|
X²= Mechanical Interlocking |
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
MOMENTARY START / STOP INSERTS AND SWITCHES
|
|
|
| Locate Pendant Series and select the Accessory Switches available. |
|
|
 |
| Ref |
Model No. |
Description |
J |
L |
PSW |
Price |
| D |
|
One Button |
X |
X |
X |
$51.00
|
| D |
|
Specify "x" = color |
X |
X |
X |
$129.00
|
| F |
|
One Button |
X³ |
X³ |
X³ |
$51.00
|
| J |
|
One Button |
X |
|
X |
$212.00
|
| C |
|
Two Button |
X |
|
X |
$74.00
|
| K |
|
Two Button (one hole) |
X³ |
|
X³ |
$173.00
|
| P |
|
Two Button (one hole) |
X³ |
|
X³ |
$373.00
|
| Q |
|
One Button |
X³ |
|
X³ |
$33.40
|
|
|
X³= Accessory area only |
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
|
MAINTAINED START / STOP INSERTS AND SWITCHES
|
|
|
|
| Ref |
Model No. |
Description |
J |
L |
PSW |
Price |
| D |
|
Push On / Off |
X³ |
X |
X³ |
$62.00
|
| F |
|
Push On / Off |
X³ |
X³ |
X³ |
$42.20
|
|
|
X³= Accessory area only |
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
|
SELECTOR SWITCHES
|
 |
| Ref |
Model No. |
Description |
J |
L |
PSW |
Price |
| Y |
|
Two Way (A-B) |
X³ |
X4 |
X³ |
$98.00
|
| Y |
|
Three Way (A-Both-B) |
X³ |
X4 |
X³ |
$98.00
|
| Y |
|
Three Way* |
X³ |
X4 |
X³ |
$107.00
|
| Y |
|
Three Way (A-Off-B) |
X³ |
X4 |
X³ |
$98.00
|
| Y |
|
Three Way** |
X³ |
X4 |
X³ |
$107.00
|
| Z |
|
Three Way (A-B-Both) |
X |
|
X |
$438.00
|
| Z |
|
Two Way (A-B) |
X |
|
X |
$329.00
|
| Z |
|
Three Way (A-Both-B) |
X |
|
X |
$312.00
|
| Z |
|
Three Way* |
X |
|
X |
$522.00
|
| Z |
|
Four Way (A-B-C-D) |
X |
|
X |
$436.00
|
| Z |
|
Three Way (Off-A-Both) |
X |
|
X |
$438.00
|
| Z |
|
Three Way (A-Off-B) |
X |
|
X |
$438.00
|
| Z |
|
Two Way (On-Off) |
X |
|
X |
$329.00
|
| Z |
|
Three Way** |
X |
|
X |
$356.00
|
|
*-Spring Return to Center
**-Spring Return from Right
***-For use with RPS-1x in Accessory Area |
X³= Accessory area only
X4 = Requires Deep Back Enc. |
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
|
EMERGENCY STOPS
|
 |
| Ref |
Model No. |
Description |
J |
L |
PSW |
Price |
| T |
|
E-Stop |
X³ |
X4 |
X³ |
$117.00
|
| T |
|
E-Stop* |
X³ |
X4 |
X³ |
$500.00
|
| W |
|
E-Stop |
X |
|
|
$286.00
|
|
|
X³= Accessory area only
X4 = Requires Deep Back Enc. |
|
|
|
|
|
MISCELLANOUS SWITCHES AND PILOT LIGHTS
|
 |
| Ref |
Model No. |
Description |
J |
L |
RPB |
PSW |
Sq D
SKYP |
Price |
| F |
|
Horn |
X³ |
X³ |
|
X³ |
X³ |
$51.00
|
| A2 |
|
Toggle |
X³ |
X4 |
|
X³ |
X³ |
$108.00
|
| B2 |
|
Key Switch |
X³ |
X4 |
|
X³ |
X³ |
$136.00
|
| U |
|
Small L.E.D. Pilot* |
X³ |
X³ |
|
X³ |
X³ |
$62.00
|
| D |
|
L.E.D. Pilot* |
X³ |
X4 |
|
X³ |
X³ |
$131.00
|
| S |
|
Toggle |
|
|
|
X³ |
X³ |
$33.40
|
| C2 |
|
Key Switch |
X³ |
|
|
X³ |
X |
$595.00
|
|
|
X³= Accessory area only
X4 = Requires Deep Back Enc. |
|
|
|
|
|
|
|
|
|
LEGEND PLATES LP-17
|
|
A standard package of legend plates is furnished with each enclosure and complete station as shown below. Additional
packages can be ordered by the catalog number listed. |
|
|
|
|
|
|
|
 |
|
 |
|
|
|
|
|
The code numbering for the conductors in a round
cable all follow the NEMA standards. The Green
cable is always a ground and should never be used
for any switching function. The numbers shown on
the chart are arranged so that the various cable
sizes always start with the Green and end with
the last number in the cable. For example, the
RPC-414 uses the Green, Black, Red and Blue.
The RPC-816 uses the Green and numbers 1
thru 7. The rest of the cable sizes are listed along
the color coding chart.
The exception to the color coding chart is the
RPC-316-S2. This special round cable is primarily
for two button stations that need either an internal
strain cable or ground. In this cable you have both
in the Green wire. It is constructed of a heavy steel
braid which will serve for either or both purposes.
The other three colors are blue, yellow and brown. |
|
|
|
|
|
|
|
|
Rounc Cable
Conductor Color Coding
|
|
|
|
|
 |
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
ROUND PENDANT CONTROL CABLES AND ACCESSORIES
|
|
|
|
|
|
|
| Round Pendant Control Cables (UL Listed and CSA Approved) |
|
|
|
|
|
Cord Grips for Round Cable |
|
|
|
| With 600 V 105°C Yellow PVC. Color-coded in accord with NEMA standards. |
|
|
Model
Number |
Conduit Size
NPS - Inches |
Accommodates Cable
Diameter - Inches |
Price |
|
|
3/4 |
.430 - .563 |
$21.80
|
|
|
3/4 |
.560 - .687 |
$26.20
|
|
|
1 |
.560 - .687 |
$16.70
|
|
|
1 |
.625 - .750 |
$16.70
|
|
|
1 |
.750 - .825 |
$16.70
|
|
|
1 1/4 |
.625 - .750 |
$24.00
|
|
|
1 1/4 |
.750 - .875 |
$24.00
|
|
|
1 1/4 |
.875 - 1.000 |
$24.00
|
|
|
1 1/4 |
1.000 - 1.125 |
$28.00
|
|
|
1 1/4 |
1.125 - 1.250 |
$30.00
|
|
|
Model
Number
|
Description
|
Weight/ft
|
Price/ft
|
|
|
4-Conductor, #14 AWG,
.460" Nominal OD
|
0.14
|
$7.30
|
|
|
8-Conductor, #16 AWG,
.640" Nominal OD
|
0.2
|
$8.20
|
|
|
8-Conductor, #16 AWG,
/w External Strain Cable
|
0.2
|
$9.90
|
|
|
12-Conductor, #16 AWG,
.745" Nominal OD
|
0.3
|
$12.00
|
|
|
12-Conductor, #16 AWG
with External Strain Cable
|
0.3
|
$12.90
|
|
|
16-Conductor, #16 AWG,
.840" Nominal OD
|
0.38
|
$0.00
|
|
|
16-Conductor, #16 AWG
with External Strain Cable
|
0.38
|
$13.60
|
|
|
24-Conductor, #16 AWG,
.890" Nominal OD
|
0.49
|
$21.20
|
|
|
24-Conductor, #16 AWG
with External Strain Cable
|
0.49
|
$25.00
|
|
RPC-3616-X
|
36-Conductor, #16 AWG,
.885" Nominal OD
|
0.68
|
Contact Us
|
|
|
3-Conductor, #16 AWG
with Internal SteelStrain Relief Cable, .520" Nominal OD Not UL
|
0.13
|
$5.40
|
|
|
|
|
|
|
|
Steel Strain Relief Cable and Accessories
|
|
|
|
|
|
|
| RPC-SRC - Nylon-Coated Steel Cable, 1/8" Diameter, 480 lb. Capacity |
|
$1.20/ft |
|
|
|
|
|
|
| RPC-SRCC - UClamp for Strain Cable (4 required per cable) |
|
$1.20 |
|
|
|
|
|
|
| RPC-SRCE - Eye bolt to Connect Strain Cable to Junction Box |
|
$2.30 |
|
|
|
|
|
|
| RPC-SRCT - Steel Thimble for Cable Bend |
|
$2.30 |
|
|
|
|
|
|
| RPC-SR HDW KIT - Strain Relief Hardware Kit |
|
$7.80 |
|
|
|
|
|
|
| Contact us for: |
|
|
|
|
|
|
|
|
|
|
|
| • Stainless Steel Strain Relief Cable and Hardware. |
|
|
|
|
|
|
Duct O Wire, Push Button Station, Push Button Stations, Hoist Push Button, Hoist Pushbutton, Hoist Pushbutton Station, Hoist Push-
button Stations, Hoist Pushbuttons, and Pendant Push Button Stations from your complete source for material handling equipment.
|
|
