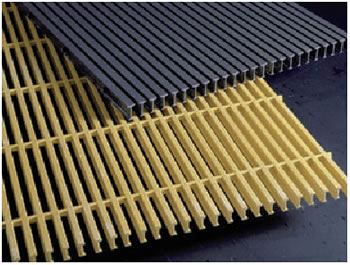

main product photo

GATORDECK™ - PULTRUDED GRATING
Pultrusion is a continuous molding process in which glass
roving, glass matting, and a synthetic surface veil are
literally "pulled" simultaneously through a flame-
retardant polyester or vinylester resin bath. Desired
geometric shapes are formed and solidified as they
are pulled through a heated steel die. Our Gator-
Deck® pultruded grating provides the ultimate
combination of strength, corrosion resistance, and
structural integrity as a result of the automated
pultrusion process.		 pultruded grating
pultruded grating
pultruded grating
STANDARD RESIN SYSTEMS
WIDTH X LENGTH
Standard Resins meet ASTM E-84 Class 1 flame
rating, and include UV inhibitors for applications
involving continuous exposure to the sun. Choose from
the following standard resin systems. Or, call us about
creating special resins for unique environments, such as
low smoke, low toxicity, or extra low flame applications.
IFR - Made with a premium-grade isophthalic
polyester flame-retardant resin system. Standard colors
are yellow and gray for pultruded grating. WT grating
and one inch I-bar grating are also available in white.
VFR - Made with a premium-grade vinylester flame-
retardant resin system for added protection against
corrosion. Standard colors are yellow and gray for
pultruded grating.
Grating sizes are specified using width (cross-rod
dimension) and length (bearing bar dimension)
pultruded grating
GatorDeck Pultruded Grating Selection
Series Open Area Depth Top Flange Width Bar Spacing Bars/Ft. Lbs/Ft²
I-6010 60% 1" .6" 1-1/2" 8 2.35
I-4010 40% 1" .6" 1" 12 3.41
I-6015 60% 1-1/2" .6" 1-1/2" 8 2.83
I-4015 40% 1-1/2" .6" 1" 12 4.13
I-3815 38% 1-1/2" 1-1/2" 2.4" 12 2.68
T-2515 25% 1-1/2" 1-1/2" 2" 6 3.0
T-1215 12% 1-1/2" 1-1/2" 1.714" 7 3.5
T-5020 50% 2" 1" 2" 6 3.1
T-3320 33% 2" 1" 1-1/2" 8 4.1
WT-3310 33% 1" 1-5/8" 2.4" 5 2.1
WT-1810 18% 1" 1-5/8" 2" 6 2.6
Typical Physical Properties of Our Pultruded Components
Property Test Method Units I-Series
70-75% Glass		 T-Series
65-70% Glass
Tensile Strength ASTM D-638 PSI 125,000 100,000
Tensile Modulus ASTM D-638 PSI 6.0 x 106 5.6 x 106
Flexural Strength ASTM D-790 PSI 125,000 100,000
Flexural Modulus ASTM D-790 PSI 6.0 x 106 5.6 x 106
Compressive
Strength		 ASTM D-695 PSI 65,000 60,000
Izod Impact Notch ASTM D-256 Ft-Lbs/In 40 40
Barcol Hardness 50 (min) 50 (min)
Specific Gravity ASTM D-792 2 2
Water Absorption ASTM D-570 Max % 0.03 0.03
Flame Retardant ASTM E-84 Less than 25 Less than 25
Flame Retardant ASTM D-635 Self-Extinguishing Self-Extinguishing

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

PRICING FOR PULTRUDED GRATING
Product Dimensions Thickness Weight
(lbs/ft²)		 Price
per ft²
60% Open Area - I Bar
Bars 1.5" on Center; 12" Cross Rods 1" 2.35
$25.66
Bars 1.5" on Center; 6" Cross Rods 1" 2.58
$28.97
Bars 1.5" on Center; 12" Cross Rods 1" 2.35
$29.03
Bars 1.5" on Center; 6" Cross Rods 1" 2.58
$32.46
Bars 1.5" on Center; 12" Cross Rods 1.5" 2.83
$28.14
Bars 1.5" on Center; 6" Cross Rods 1.5" 3.06
$31.43
Bars 1.5" on Center; 12" Cross Rods 1.5" 2.83
$31.94
Bars 1.5" on Center; 6" Cross Rods 1.5" 3.06
$35.37
50% Open Area - I Bar
Bars 1.2" on Center; 12" Cross Rods 1" 2.90
$29.26
Bars 1.2" on Center; 6" Cross Rods 1" 3.20
$32.63
Bars 1.2" on Center; 12" Cross Rods 1" 2.90
$33.34
Bars 1.2" on Center; 6" Cross Rods 1" 3.20
$37
Bars 1.2" on Center; 12" Cross Rods 1.5" 3.50
$32.34
Bars 1.2" on Center; 6" Cross Rods 1.5" 3.70
$35.74
Bars 1.2" on Center; 12" Cross Rods 1.5" 3.50
$37.03
Bars 1.2" on Center; 6" Cross Rods 1.5" 3.70
$40.69
40% Open Area - I Bar
Bars 1" on Center; 12" Cross Rods 1" 3.41
$33.31
Bars 1" on Center; 6" Cross Rods 1" 3.61
$36.71
Bars 1" on Center; 12" Cross Rods 1" 3.41
$38.17
Bars 1" on Center; 6" Cross Rods 1" 3.61
$41.69
Bars 1" on Center; 12" Cross Rods 1.5" 4.13
$37.03
Bars 1" on Center; 6" Cross Rods 1.5" 4.36
$40.43
Bars 1" on Center; 12" Cross Rods 1.5" 4.13
$42.60
Bars 1" on Center; 6" Cross Rods 1.5" 4.36
$46.11
Prices Based on 4' Width max (Others Add $1.00/sf to Price) and 10', 12', 20', and 24' span.
Includes Grit
Standard Colors are Dk. Gray and Yellow.

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

Product Dimensions Thickness Weight
(lbs/ft²)		 Price
per ft²
12% Open Area - 1-1/2" T Bar
Bars 1.714" on Center; 12" Cross Rods 1.5" 3.73
$29.29
Bars 1.714" on Center; 6" Cross Rods 1.5" 3.50
$32.60
Bars 1.714" on Center; 12" Cross Rods 1.5" 3.73
$33.49
Bars 1.714" on Center; 6" Cross Rods 1.5" 3.50
$36.94
25% Open Area - 1-1/2" T Bar
Bars 2" on Center; 12" Cross Rods 1.5" 3.43
$26.83
Bars 2" on Center; 6" Cross Rods 1.5" 3.20
$30.14
Bars 2" on Center; 12" Cross Rods 1.5" 3.43
$30.86
Bars 2" on Center; 6" Cross Rods 1.5" 3.20
$33.94
38% Open Area - 1-1/2" T Bar
Bars 2.4" on Center; 12" Cross Rods 1.5" 2.91
$24.37
Bars 2.4" on Center; 6" Cross Rods 1.5" 2.68
$27.69
Bars 2.4" on Center; 12" Cross Rods 1.5" 2.91
$27.51
Bars 2.4" on Center; 6" Cross Rods 1.5" 2.68
$30.94
33% Open Area - 2" T Bar
Bars 1.5" on Center; 12" Cross Rods 2" 3.90
$37.69
Bars 1.5" on Center; 6" Cross Rods 2" 4.13
$41
Bars 1.5" on Center; 12" Cross Rods 2" 3.90
$42.11
Bars 1.5" on Center; 6" Cross Rods 2" 4.13
$45.54
50% Open Area - 2" T Bar
Bars 2" on Center; 12" Cross Rods 2" 3.10
$30.94
Bars 2" on Center; 6" Cross Rods 2" 3.33
$30.34
Bars 2" on Center; 12" Cross Rods 2" 3.10
$34.37
Bars 2" on Center; 6" Cross Rods 2" 3.33
$37.83
Prices Based on 4' Width max (Others Add $1.00/SF to Price) and 10', 12', 20', and 24' span.
Includes Grit
Standard Colors are Dk. Gray and Yellow.

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

Product Dimensions Thickness Weight
(lbs/ft²)		 List Price
per ft²
33% Open Area - 1" WT Bar ( 1-5/8" Wide )
Bars 2.4" on Center; 12" Cross Rods 1" 2.40
$30.17
Bars 2.4" on Center; 6" Cross Rods 1" 2.60
$32.86
WT3310-12 VFR Bars 2.4" on Center; 12" Cross Rods 1" 2.40 -
WT3310-6 VFR Bars 2.4" on Center; 6" Cross Rods 1" 2.60 -
18% Open Area - 1" WT Bar ( 1-5/8" Wide )
Bars 2.0" on Center; 12" Cross Rods 1" 2.60
$32.57
Bars 2.0" on Center; 6" Cross Rods 1" 2.83
$35.46
WT1810-12 VFR Bars 2.0" on Center; 12" Cross Rods 1" 2.60 -
WT1810-6 VFR Bars 2.0" on Center; 6" Cross Rods 1" 2.83 -
Clip Assemblies
Type 316 stainless steel clips, bolts, nuts and washers are available for panel positioning and hold-down.
Standard clips made of special alloys are also available upon request.

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

GATORDECK ACCESSORIES
Clips
Part Number Clip Type For Use With Weight Price
Saddle Clip ("M") GD-I6010 Grating 0.06
$2.66
Saddle Clip ("M") GD-I6015 Grating 0.07
$3.23
Plate Clip GD-I4010 & GD-I4015 Grating 0.01
$1.74
Saddle Clip ("M") GD-I4010 & GD-I4015 Grating 0.08
$4.34
Saddle Clip ("M") GD-T5020 Grating 0.09
$4.09
Plate Clip GD-T3320 & WT1810 Grating 0.06
$6.80
Saddle Clip ("M") GD-I5010 & GD-I5015 Grating 0.08
$5.43
Plate Clip GD-WT3310 Grating 0.10
$7.06
Plate Clip GD-WT1810 & GD-T3320 Grating 0.06
$6.80
Washer Clip GD-T1215 Grating 0.06
$4.43
Washer Clip GD-T2515 Grating 0.06
$4.43
Washer Clip GD-T3815 Grating 0.06
$4.43
Part Number Clip Type For Use With Weight Price
Hardware
1/4" Clip Hardware: Bolt Price Includes: 1 Hex Head Bolt, 1 Flat Washer & 1 Nylock Nut
1/4" x 1" bolt 1" Thick Grating Or Less 0.02
$1.77
1/4" x 1 1/4" bolt 1" Thick Grating Or Less 0.02
$1.77
1/4" x 1 1/2" bolt 1 1/2" Thick Grating Or Less 0.03
$1.77
1/4" x 1 3/4" bolt 1 1/2" Thick Grating Or Less 0.03
$1.77
1/4" x 2" bolt 2" Thick Grating Or Less 0.04
$1.77
1/4" x 2 1/4" bolt 2" Thick Grating Or Less 0.04
$1.77
1/4" x 2 1/2" bolt 2" Thick Grating Or Less 0.05
$1.77
Part Number Clip Type For Use With Weight Price
Resin Seal Kits: Includes 1 Pint of Resin, Catalyst, 1 Brush & Mixing Instructions
1 Pint All Standard Resin Pultruded Grating 0.80
$35.40
1 Quart All Standard Resin Pultruded Grating 1.30
$70.77
Epoxy Kits *
1 Pint All Standard Resin Pultruded Grating 1.40
$39.80
1 Quart All Standard Resin Pultruded Grating 2.50
$73.86
GATORDECK™ GD-I6010
Bearing Bar Type:
Open Area:
Thickness:
Bearing Bar Centers:
Resin Systems:
Colors:

Approx. Weight:
Other Bar Spacing Avail.:		 I-Bar
60%
1.0"
1.5"
IFR, VFR
Yellow, Gray,
or White
2.35 lbs/sq ft
40% & 50%
Open Area
SPAN
INCHES
LOAD
TYPE
LOAD FOR
.25-inch
deflection		 .375-inch
deflection
12
UL
 250 500 1000 1500 2000 2400 2800 3200
UL deflection
.005 .010 .020 .029 .039 .047 .055 .063
CL
 250 500 1000 1500 2000 2400 2800 3200
CL deflection
.007 .014 .029 .043 .058 .069 .081 .092
18
UL
 100 250 500 750 1000 1200 1500 1800 3012 4518
UL deflection
.008 .021 .042 .062 .083 .100 .125 .149
CL
 100 250 500 750 1000 1200 1500 1800 2778 4167
CL deflection
.009 .023 .045 .068 .090 .108 .135 .162
24
UL
 100 200 300 400 600 800 1000 1200 1005 1508
UL deflection
.025 .050 .075 .099 .149 .199 .249 .298
CL
 100 200 400 600 800 1000 1200 1500 1225 1838
CL deflection
.020 .041 .082 .122 .163 .204 .245 .306
30
UL
 100 200 300 400 500 600 800 434 650
UL deflection
.058 .115 .173 .231 .288 .346 .461
CL
 200 300 400 500 600 800 1000 677 1015
CL deflection
.074 .111 .148 .185 .222 .295 .369
36
UL
 100 125 150 200 300 400 221 332
UL deflection
.113 .141 .169 .226 .339 .452
CL
 100 200 400 500 600 700 411 617
CL deflection
.061 .122 .243 .304 .365 .426
42
UL
 75 100 125 150 250 139 209
UL deflection
.135 .179 .224 .269 .449
CL
 100 150 200 300 400 260 390
CL deflection
.096 .144 .193 .289 .385
48
UL
 50 75 100 125 71 106
UL deflection
.176 .265 .353 .441
CL
 100 150 200 250 177 266
CL deflection
.141 .212 .282 .353
Values tabled are for design selection and are approximate. We recommend selecting gratings based on a deflection of .25-inch or less.
This deflection may be exceeded at the discretion of the designer. Deflections of .25-inch or less will give excellent pedestrian comfort.
Deflections of .375-inch or less will give satisfactory pedestrian comfort. Loads for short spans in the .250 and .375 deflection columns
have been omitted to allow for shear properties.
GATORDECK™ GD-I6015
Bearing Bar Type:
Open Area:
Thickness:
Bearing Bar Centers:
Resin Systems:
Colors:

Approx. Weight:
Other Bar Spacing Avail.:		 I-Bar
60%
1.5"
1.5"
IFR, VFR
Yellow, Gray,
or White
2.83 lbs/sq ft
40% & 50%
Open Area
SPAN
INCHES		 LOAD
TYPE
LOAD FOR
.25-inch
deflection		 .375-inch
deflection
12 UL 250 500 1000 1500 2000 500 3500 4500
UL deflection .002 .003 .007 .010 .013 .016 .023 0.029
CL 250 500 1000 2000 3000 4000 5000 6000
CL deflection .003 .006 .012 .024 .036 .048 .060 .072
18 UL 250 500 1000 1500 2000 2500 3500 4500
UL deflection .008 .015 .030 .045 .061 .076 .106 .136
CL 250 500 1000 2000 3000 4000 5000 6000
CL deflection .008 .016 .031 .062 .093 .124 .155 .186
24 UL 250 500 1000 1500 2000 2500 3000 3500 2737 4106
UL deflection .023 .046 .091 .137 .183 .228 .274 .320
CL 500 1000 1500 2000 2500 3000 3500 4500 3472 5208
CL deflection .036 .072 .108 .144 .180 .216 .252 .324
30 UL 250 500 750 1000 1250 1500 1750 2000 1178 1768
UL deflection .053 .106 .159 .212 .265 .318 .371 .424
CL 250 500 1000 1500 2000 2300 2600 2900 1812 2717
CL deflection .035 .069 .138 .207 .276 .317 .359 .400
36 UL 100 125 250 500 600 800 1000 631 947
UL deflection .04 .050 .099 .198 .238 .317 .396
CL 200 400 600 800 1000 1200 1400 1179 1769
CL deflection .042 .085 .127 .170 .212 .254 .297
42 UL 100 125 200 300 400 600 315 473
UL deflection .079 .099 .159 .238 .317 .476
CL 100 200 300 400 600 1000 693
CL deflection .036 .072 .108 .144 .217 .361
48 UL 100 125 200 250 400 197 295
UL deflection .127 .159 .254 .317 .508
CL 100 200 300 400 600 508 762
CL deflection .049 .098 .148 .197 .295
54 UL 75 100 125 250 140 210
UL deflection .134 .178 .223 .446
CL 100 200 300 600 335 502
CL deflection .075 .149 .224 .448
60 UL 50 75 100 88 132
UL deflection .142 .213 .284
CL 100 200 300 247 370
CL deflection .101 .203 .304
Values tabled are for design selection and are approximate. We recommend selecting gratings based on a deflection of .25-inch or less.
This deflection may be exceeded at the discretion of the designer. Deflections of .25-inch or less will give excellent pedestrian comfort.
Deflections of .375-inch or less will give satisfactory pedestrian comfort. Loads for short spans in the .250 and .375 deflection columns
have been omitted to allow for shear properties.
GATORDECK™ GD-I4010
Bearing Bar Type:
Open Area:
Thickness:
Bearing Bar Centers:
Resin Systems:
Colors:

Approx. Weight:		 I-Bar
40%
1.0"
1.0"
IFR, VFR
Yellow, Gray,
or White
3.41 lbs/sq ft
SPAN
INCHES
LOAD
TYPE
LOAD FOR
.25-inch
deflection		 .375-inch
deflection
12
UL
250 500 1000 1500 2000 2500 3500 4500
UL deflection
 .003 .006 .012 .018 .024 .030 .042 .054
CL
250 500 1000 1500 2000 2500 3500 4500
CL deflection
 .005 .010 .019 .029 .039 .048 .068 .087
18
UL
105 250 500 750 1000 1500 2250 3000 4464 6696
UL deflection
.006 .014 .028 .042 .056 .084 .126 .168
CL
100 250 500 750 1500 2250 3000 4000 4198 6297
CL deflection
 .006 .015 .030 .045 .089 .134 .179 .238
24
UL
100 200 300 400 600 800 1200 1600 1471 2206
UL deflection
 .017 .034 .051 .068 .102 .136 .204 .272
CL
100 200 400 600 1000 1400 1800 2200 1894 2841
CL deflection
 .013 .026 .053 .079 .132 .185 .238 .290
30
UL
100 200 300 400 500 750 1000 649 974
UL deflection
.039 .077 .116 .154 .193 .289 .385
CL
200 300 400 600 800 1200 1600 1019 1529
CL deflection
 .049 .074 .098 .147 .196 .294 .393
36
UL
100 150 200 300 400 500 328 492
UL deflection
 .076 .114 .153 .229 .305 .381
CL
100 200 300 500 700 900 617 926
CL deflection
 .041 .081 .122 .203 .284 .365
42
UL
75 100 150 200 300 212 318
UL deflection
.088 .118 .177 .236 .353
CL
100 150 300 450 600 391 586
CL deflection
 .064 .096 .192 .288 .384
48
UL
75 100 125 150 107 161
UL deflection
 .175 .234 .292 .350
CL
100 150 200 400 265 398
CL deflection
 .094 .141 .188 .377
Values tabled are for design selection and are approximate. We recommend selecting gratings based on a deflection of .25-inch or less.
This deflection may be exceeded at the discretion of the designer. Deflections of .25-inch or less will give excellent pedestrian comfort.
Deflections of .375-inch or less will give satisfactory pedestrian comfort. Loads for short spans in the .250 and .375 deflection columns
have been omitted to allow for shear properties.
GATORDECK™ GD-I4015
Bearing Bar Type:
Open Area:
Thickness:
Bearing Bar Centers:
Resin Systems:

Colors:
Approx. Weight:		 I-Bar
40%
1.5"
1.0"
Iso-Polyester FR
Vinylester FR
Yellow & Gray
4.13 lbs/sq ft
SPAN
INCHES
LOAD
TYPE
LOAD FOR
.25-inch
deflection		 .375-inch
deflection
12
UL
250 500 1000 1500 2000 4000 5000 6000
UL deflection
.001 .002 .004 .007 .009 .017 .022 .026
CL
250 500 1000 2000 3000 4000 5000 6000
CL deflection
 .002 .003 .007 .013 .02 .027 .033 .040
18
UL
 250 500 1000 1500 2000 2500 3500 4000
UL deflection
.006 .01 .020 .030 .041 .051 .071 .081
CL
250 500 1000 2000 3000 4000 5000 6000
CL deflection
 .005 .011 .021 .043 .064 .085 .107 .128
24
UL
250 500 800 1200 1600 2000 2500 3000 4121 6181
UL deflection
.015 .030 .049 .073 .097 .121 .152 .182
CL
500 750 1000 1500 2000 3000 4500 6000 5137 7705
CL deflection
 .024 .037 .049 .073 .097 .146 .219 .292
30
UL
250 500 750 1000 1200 1600 2200 2800 1759 2638
UL deflection
.036 .071 .107 .142 .171 .227 313 .398
CL
250 500 1000 1500 2000 2800 3500 4200 2734 4102
CL deflection
 .023 .046 .091 .137 .183 .256 .320 .384
36
UL
100 200 400 600 900 1200 1500 947 1420
UL deflection
.026 .053 .106 .158 .238 .317 .396
CL
250 500 1000 1500 2000 2400 2800 1769 2653
CL deflection
 .035 .071 .141 .212 .283 .339 .396
42
UL
100 200 300 450 600 750 474 711
UL deflection
.053 .105 .158 .237 .316 .395
CL
100 200 400 800 1200 1600 1037 1556
CL deflection
.024 .048 .096 .193 .289 .386
48
UL
100 200 300 400 500 317 476
UL deflection
.079 .158 .237 .315 .394
CL
200 400 600 800 1200 762 1143
CL deflection
 .066 .131 .197 .262 .394
54
UL
100 125 200 300 213 320
UL deflection
.117 .147 .235 .352
CL
100 250 500 750 501 752
CL deflection
 .050 .125 .249 .374
60
UL
100 125 200 126 189
UL deflection
.199 .248 .397
CL
100 250 600 399 598
CL deflection
 .063 .157 .376
Values tabled are for design selection and are approximate. We recommend selecting gratings based on a deflection of .25-inch or less.
This deflection may be exceeded at the discretion of the designer. Deflections of .25-inch or less will give excellent pedestrian comfort.
Deflections of .375-inch or less will give satisfactory pedestrian comfort. Loads for short spans in the .250 and .375 deflection columns
have been omitted to allow for shear properties.
GATORDECK™ GD-I5020
Bearing Bar Type:
Open Area:
Thickness:
Bearing Bar Centers:
Resin Systems:
Colors:
Approx. Weight:
Other Bar Spacing
Avail.:		 T-Bar
50%
2.0"
2.0"
IFR, VFR
Yellow & Gray
3.10 lbs/sq ft

33% Open Area
SPAN
INCHES		 LOAD
TYPE
LOAD FOR
.25-inch
deflection		 .375-inch
deflection
24 UL 500 750 1000 1250 1500 2000 3000 4000
UL deflection .025 .038 .050 .063 .075 .100 .150 .200
CL 500 750 1000 1250 1500 2000 3000 4000
CL deflection .021 .031 .042 .052 .062 .083 .125 .166
30 UL 250 500 750 1000 1500 2000 2500 3000 1938 2907
UL deflection .032 .065 .097 .129 .194 .258 .323 .357
CL 250 500 750 1000 1500 2000 2500 3000 3000 4500
CL deflection .021 .042 .063 .083 .125 .167 .208 .250
36 UL 100 250 500 750 1000 1250 1500 2000 999 1499
UL deflection .025 .063 .125 .188 .250 .313 .375 .500
CL 100 250 500 750 1000 1250 1500 2000 1800 2701
CL deflection .014 .035 .069 .104 .139 .174 .208 .278
42 UL 100 125 250 500 750 1000 1250 550 825
UL deflection .045 .057 .114 .227 .341 .454 .568
C 100 125 250 500 750 1000 1250 1166 1750
CL deflection .021 .027 .054 .107 .161 .214 .268
48 UL 100 250 300 400 500 600 313 469
UL deflection .080 .200 .240 .320 .400 .480
CL 100 250 300 400 500 750 786 1179
CL deflection .032 .080 .095 .127 .159 .239
54 UL 100 125 250 300 400 208 313
UL deflection .120 .150 .300 .360 .480
CL 100 250 300 400 500 561 841
CL deflection .045 .112 .134 .178 .223
60 UL 75 100 200 250 129 193
UL deflection .146 .195 .389 .486
CL 100 250 500 750 400 600
CL deflection .062 .156 .312 .469
66 UL 75 100 125 150 94 141
UL deflection 0.20 .267 .333 .400
CL 100 200 300 400 313 469
CL deflection .080 .160 .240 .320
72 UL 75 100 125 67 100
UL deflection .281 .375 .469
CL 100 250 400 244 366
CL deflection .103 .256 .410
78 UL 50 75 48 72
UL deflection .260 .390
CL 100 250 194 292
CL deflection .129 .322
Values tabled are for design selection and are approximate. We recommend selecting gratings based on a deflection of .25-inch or less.
This deflection may be exceeded at the discretion of the designer. Deflections of .25-inch or less will give excellent pedestrian comfort.
Deflections of .375-inch or less will give satisfactory pedestrian comfort. Loads for short spans in the .250 and .375 deflection columns
have been omitted to allow for shear properties.
Gatorgrate-Pultruded Grating, Polyester Grating, Vinylester Grating, Fiberglass Grating, Covered Grating, Molded
Grating, Corrosion Resistant, Grit Surface, Pultruded Deck, Grating, and Fire Retardant from your source for material
handling equipment.
