Static Discharge Reels

$453.00

Spring Driven Reel. Cable extends to 50'.

SKU

G3050

SERIES G 3000
STATIC DISCHARGE / GROUNDING REELS

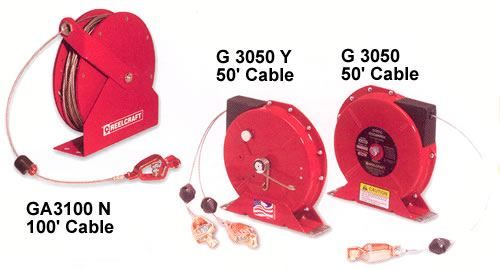

Series G 3000

Static discharge reels are used to ground equipment operating in hazardous atmospheres. When properly clamped to ground, the static discharge reel dissipates static electrical buildup, reducing the chances of sparking and the potential for explosion.



Cable Included
Cable Included

G3050 SERIES DIMENSIONAL DRAWING

GA3100 N SERIES DIMENSIONAL DRAWING

Click the button of the item you wish to purchase.

PRICING

Model No.	Price	Cable Extended (ft)	Clamp Rating	Max Temp	Cable Notes	Weight lbs
G 3050(QS)	$453	50	100 AMP	150	Single 7 x 7 stranded steel*	12
G 3050 Y(QS)	$552	50	100 AMP	150	35' (9.2m) plus dual 15' (4.6m) for ‘Y' *Total extension 50' (15m)	12
G 3050 N(QS)	$487	50	100 AMP	150	Nylon covered cable**	12
GA3100 N(QS)	$674	100	100 AMP	125	Hi-vis orange nylon covered cable**	16
GHC3100 N(QS)	$462	100	100 AMP	125	Hi-vis orange nylon covered cable**	12

*3/32" OD aircraft cable. DC resistance is approximately one ohm per 50 ft. of cable. **Nylon covered cable (1/8" O.D.)

SERIES G 3000
