Fuel Reel

$1,668.00
Dimensions
75' Length

Low Pressure Reel

* Images may or may not be the exact model.  Images are for reference only.

SKU
FD83075OLP

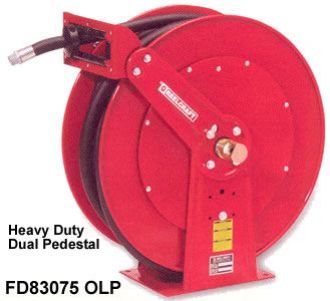

main product photo

FUEL HOSE REELS

Series F7000 / FE9000 /FD9000/FF9000 / F80000 / FD80000
Spring Retractable Fuel Reels
Series F7000 - 3/4" ID
Series FE9000 - 3/4" ID
Series FF9500, FF9600 - 1 1/4", 1 1/2" ID
Series F80000 - 3/4" ID
Series FD80000 - 3/4", 1" ID
Reelcraft’s spring retractable fuel delivery reels,
equipped with Viton seals, incorporate metal forms
to insure the greatest possible strength and are ideal
for mobile and permanent-mount applications.
These rugged, corrosion-resistant reels are suitable
for a wide variety of fuel applications including E85.
Series F/FD/FE/FH reels are all supplied with our
ball-bearing style swivel.
NEW SWIVEL FEATURES
Ball-bearing design reduces load and minimizes
wear.
Full flow design minimizes pressure drop.
Zinc plated for additional corrosion resistance.
Four seal options, AFLAS (std.) Buna, Viton® or EPR.
single pedestal fuel reels
ADDITIONAL FEATURES
Five-in-one aluminum casting.
Containerized spring assembly.
Hose anti-latch out feature.
Two sealed ball bearings for smooth rotation of main
shaft.
Dual pedestal and dual guide arm support.
heavy duty dual pedestal reels
See below
pricing table
for accessories
HEAVY DUTY
APPLICATIONS
• Industrial • Agriculture
• Automotive Service Centers • Farm & Ranch
• Mining (above ground) • Service Trucks
• Fleet Maintenance Facilities • Fluid Transfer
• Aircraft Maintenance • Fuel Transfer
HIGH CAPACITY
DIMENSIONS
hose reels
F7000 FD80000 FE9000
in mm hose in mm in mm
A 20 1/4 521 24 610 26 1/4 667
B 19 483 25 3/8 645 26 1/4 667
C 7 7/8 200 11 3/8 289 13 3/4 349
D 3 7/8 98 3/4" 14 1/4 362 12 1/8 308
1" 15 1/4 387
E 7 178 10 1/2 267 24 1/4 616
F 7 7/8 199 22 1/4 562
G 7 178
H 17 1/2 445
J 13 1/2 343
K 7 1/2 191
Inlet is 3/4" or 1" NPTF (F) and matches hose ID.
Outlet is 3/4" or 1" NPTF (F) and matches hose ID.
Four 1/2" (12.7mm) diameter mounting holes

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

PRICING
MODELS WITH HOSE
Model Price WEIGHT PRESSURE I.D. O.D. LENGTH
lbs kg psi bar in mm in mm ft m
LOW PRESSURE AIR/WATER REELS Maximum Temperature 150°F (65°C)
$786
47
21
*50
3
¾
19
1.188
30
25
8
$1,152
79
36
*50
3
¾
19
1.188
30
35
11
$1,323
89
40
*50
3
¾
19
1.188
30
50
15
$1,668
115
52
*50
3
¾
19
1.188
30
75
23
$1,455
94
43
*50
3
1
25
1.5
38
35
11
$1,390
115
52
*50
3
1
25
1.5
38
50
15
$1,865
157
71
*50
3
1
26
1.5
38
50
15
Models not available with hose (FF) 1 1/4 32 1.75 45 50 15
1 1/4 39 2 51 50 15
*Models supplied with UL330 and cUL Nitrile synthetic rubber (ORS) hose. 250 psi minimum burst (17 Bar). Flow rates of fuel hose
are reduced by 30% with addition of internal spring type bend restrictors. For example, flow rate of F7925 OLP with internal bend
restrictors is 9.0 GPM at 40 psi; flow without internal bend restrictors is 13.0 GPM at 40 psi.

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

MODELS WITHOUT HOSE
Model Price WEIGHT PRESSURE
lbs kg psi bar
LOW PRESSURE AIR/WATER REELS Maximum Temperature 210°F (99°C)
$591
45 21 500 35
$887
74 33 500 35
$1,090
77 34 500 35
$1,027
78 35 500 35
$1,241
115 53 500 35
$1,668
125 57 300 35
*Models supplied with UL330 and cUL Nitrile synthetic rubber (ORS) hose. 250 psi minimum burst (17 Bar). Flow rates of fuel hose
are reduced by 30% with addition of internal spring type bend restrictors. For example, flow rate of F7925 OLP with internal bend
restrictors is 9.0 GPM at 40 psi; flow without internal bend restrictors is 13.0 GPM at 40 psi.

ADJUSTABLE HOSE BUMPERS
Adjustable hose bumpers are solid molded rubber assuring a long life and
nonslip grip. Hose bumpers allow the desired length of hose to be
permanently stored outside the reel. Hose bumpers are included on the reels
purchased with hose. Reels purchased without hose do not include the hose
bumper. When ordering, advise the part number, reel model and the hose ID
and OD
hose bumpers
adustable hose bumpers

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

PRICING FOR ADJUSTABLE HOSE BUMPERS
Model No. Hose
Outside Dia.		 Hose
ID		 Use with Reel Series Dia.
B-C-E		 Dia. D Wgt.
(lbs.)		 Price
S600547-1 1.750 1 1/4 FF9000 3 3/4 2 7/8 .70
$117
S600547-2 2.032 1 1/2 FF9000 3 3/4 2 7/8 .57
$117
PRICING FOR INLET HOSE
Hose
Assemblies
Hose
ID
Hose
O.D.
Hose
Length
Max
Pressure
End
Fittings
Shipping
Wgt.
PRICE
in
mm
in
mm
ft
m
psi
bar
in - NPT (M)
lbs.
Low Pressure Fuel Inlet Hose4 spiral poly yarn braid
1
25
1.5
38
2
0.6
50
3
1x1
1.7
$100.62
Low Pressure Fuel Outlet Hoses 4 spiral poly yarn braid
3/4
19
1.188
30
25
8
50
3
3/4x3/4
17.5
$212.94
3/4
19
1.188
30
35
11
50
3
3/4x3/4
24.5
$333.45
3/4
19
1.188
30
50
15
50
3
3/4x3/4
35.0
$465.66
3/4
19
1.188
30
75
23
50
3
3/4x3/4
52.5
$676.26
1
25
1.500
38
35
11
50
3
1x1
30.0
$526.50
1
25
1.500
38
50
15
50
3
1x1
42.0
$582.66
