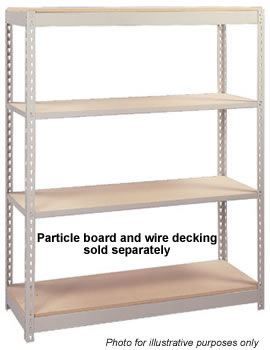

Lyon’s
rivet rack shelving is an economical solution to accommodate
a variety of storage needs. This boltless shelving is easy to
assemble
and requires no tools. Rivet rack units allow access to items
from all
sides. These units are ideal for retail or office use or any
other light
to medium-duty storage needs.
With
several upright and beam sizes available, it’s easy to
configure
the perfect storage rack for your location. A variety of decking
options, such as particle board, wire, and solid decking are
also
available.
•
14 Gauge Steel Uprights - Angle or T-Post
• Boltless Beams - Single or Double Rivet
• Beams are adjustable on 1-1/2" centers
• Center supports
• Most common sizes stocked in Dove Gray
• Optional decking available
Starter
Units are supplied with:
• 4 Angle Posts
• 2 Width Beams per Level
• 2 Depth Beams per Level
• Center Supports (for beams 60" and wider)
Add-on
Units are supplied with:
• 2 Angle Posts and 2 T-Posts
• 2 Width Beams per Level
• 2 Depth Beams per Level
• Center Supports (for beams 60" and wider)
Order Online
Click the button of the item you wish to purchase.
NOTE:
Beam may be used for width or depth dimension,
however, double rivet beams must be used at minimum
at top and bottom locations for both depth and width
directions for stability.
Double Rivet Medium Duty Beam - 3/4"w x 2 5/8"h
NOTE:
Beam may be used for width or depth dimension.
Depth dimension not to exceed 48"
"C"
Channel Heavy Duty Beam - 3/4"w x 2 13/16"h
NOTE:
Beam is recommended for width dimension only.
Order Online
Click the button of the item you wish to purchase.
Overall:
1 1/2" w x 2 1/2" h. Use with beams wider than 60".
No.
72070
- 12"d Center Support .....................................
$12.43
No.
72071
- 15"d Center Support .....................................
$13.35
No.
72072
- 16"d Center Support .....................................
$14.03
No.
72073
- 18"d Center Support .....................................
$15.12
No.
72074
- 24"d Center Support .....................................
$18.32
No.
72075
- 30"d Center Support .....................................
$21.44
No.
72076
- 32"d Center Support .....................................
$22.54
No.
72077
- 36"d Center Support .....................................
$24.82
No.
72078
- 42"d Center Support .....................................
$30.67
No.
72079
- 48"d Center Support .....................................
$31.12
4.
OPTIONAL DECKING
Rivet
Rack Wire Decking
Particle
Board Decking
Manufactured
with 4-gauge wire 2" x 4" mesh. It
meets fire code standards and features easy drop
in installation, enhanced sprinkler system effectiveness
and durable baked on enamel finish.
Available in Frost Gray.
Versatile
particle board decking is 5/8" thick
and pre-cut to size for use with Lyon rivet
rack. For general purpose and record
storage applications.
Order Online
Click the button of the item you wish to purchase.
No.
72115– Double Row Tie 18"L,
Ties double rows together
Price:
$13.79
Tie
Plates
Lock
posts together to join two or more racks side by side.
No.
72090
- 2 7/8" x 2 5/8" ..............................................
$2.51
Tie
Plates
