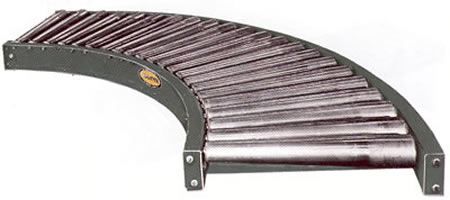

30 Deg Galv Unplated Tapered Roller Curve,28" OAW

$553.28

10 rollers per curve (galvanized)

*Images may or may not be your exact model. Images are for reference only.

Please Note: This Model Is Non-Stock, Made To Order, And Non-Returnable.

SKU
19GSRCT-25-30
main product photo

GRAVITY ROLLER CURVE CONVEYOR
(1.9 IN. DIA. X 16 GA. ROLLERS)
(1.9 IN. DIA. X 9 GA. ROLLERS)
gravity roller curve conveyor gravity conveyor
SEE BELOW FOR SUPPORTS
conveyor supports
conveyors roller conveyors
LOAD CAPACITY CHART
Support Centers Frame Capacity (Lbs.)
Maximum Distributed
Live Load Per Foot		 Roller Capacity (Lbs.)
Max. Load Per Roller
19SR/19GSR 199SR
5' 620
210
250
10' 118
STANDARD SPECIFICATIONS
WIDTHS–Between Rail Width: 13 in., 15 in., 17 in.,
19 in., 21 in., 23 in., 25 in., 27 in., 31 in., 33 in., 37 in.,
and 39 in.		 ROLLERS–(Straight) "19-SRC" 1.9 in. dia. x 16 ga.
unplated or galvanized steel tubing; 1.9 in. dia. x 9 Ga.
unplated steel tubing. Bearings are labyrinth sealed and
grease packed.
FRAME–3-1/2 in. or 4-1/2 in. deep x 1-1/2 in. flange x
10 Ga. powder painted formed steel channel with bolt-in
cross members.
AXLES–7/16 in. hex shaft, spring loaded.
CAPACITY– Same per foot capacity as straight
sections. See load capacity chart above.
BUTT COUPLINGS–Bolt-on type for bolting sections
together.
CURVES– 30°, 45°, 60° and 90° with 32-1/2 in. inside
radius for widths up to 27 in., 48 in. inside radius for 31 in.
to 39 in. between rail widths.

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths
ORDERING NOTE: Specify ROLLERS SET HIGH (most common) or SET LOW
PRICING FOR GRAVITY ROLLER CURVE CONVEYOR 1.9" (16 GA. & 9 GA.), DIA.
STRAIGHT ROLLER CURVES
Over
All
Width		 Between
Rail
Width		 Rollers
per 90°
Curve		 Inside
Radius
Model No.
1.9 x 16 GA
Galvanized
90°
Price
Model No.
1.9 x 16 GA
Galvanized
60°
Price
Model No.
1.9 x 16 GA
Galvanized
45°
Price
Model No.
1.9 x 16 GA
Galvanized
30°
Price
16" 13" 22
Single

32 1/2"
19GSRC-13-90S
19GSRC-13-60S
19GSRC-13-45S
19GSRC-13-30S
18" 15"
19GSRC-15-90S
19GSRC-15-60S
19GSRC-15-45S
19GSRC-15-30S
20" 17"
19GSRC-17-90S
19GSRC-17-60S
19GSRC-17-45S
19GSRC-17-30S
22" 19"
19GSRC-19-90S
19GSRC-19-60S
19GSRC-19-45S
19GSRC-19-30S
24" 21"
19GSRC-21-90S
19GSRC-21-60S
19GSRC-21-45S
19GSRC-21-30S
26" 23"

42
Double
19GSRC-23-90D
19GSRC-23-60D
19GSRC-23-45D
19GSRC-23-30D
28" 25"
19GSRC-25-90D
19GSRC-25-60D
19GSRC-25-45D
19GSRC-25-30D
30" 27"
19GSRC-27-90D
19GSRC-27-60D
19GSRC-27-45D
19GSRC-27-30D
34" * 31" 48"
19GSRC-31-90D
19GSRC-31-60D
19GSRC-31-45D
19GSRC-31-30D
36" * 33"
19GSRC-33-90D
19GSRC-33-60D
19GSRC-33-45D
19GSRC-33-30D
40" * 37"
19GSRC-37-90D
19GSRC-37-60D
19GSRC-37-45D
19GSRC-37-30D
42" * 39"
19GSRC-39-90D
19GSRC-39-60D
19GSRC-39-45D
19GSRC-39-30D

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

STRAIGHT ROLLER CURVES
Over
All
Width		 Between
Rail
Width		 Rollers
per 90°
Curve		 Inside
Radius
Model No.
1.9 x 9 GA
Unplated
90°
Price
Model No.
1.9 x 9 GA
Unplated
60°
Price
Model No.
1.9 x 9 GA
Unplated
45° Price
Model No.
1.9 x 9 GA
Unplated
30°
Price
16" 13"

22
Single

32 1/2"
199SRC-13-90S
199SRC-13-60S
199SRC-13-45S
199SRC-13-30S
18" 15"
199SRC-15-90S
199SRC-15-60S
199SRC-15-45S
199SRC-15-30S
20" 17"
199SRC-17-90S
199SRC-17-60S
199SRC-17-45S
199SRC-17-30S
22" 19"
199SRC-19-90S
199SRC-19-60S
199SRC-19-45S
199SRC-19-30S
24" 21"
199SRC-21-90S
199SRC-21-60S
199SRC-21-45S
199SRC-21-30S
26" 23"

42
Double
199SRC-23-90D
199SRC-23-60D
199SRC-23-45D
199SRC-23-30D
28" 25"
199SRC-25-90D
199SRC-25-60D
199SRC-25-45D
199SRC-25-30D
30" 27"
199SRC-27-90D
199SRC-27-60D
199SRC-27-45D
199SRC-27-30D
34" * 31" 48"
199SRC-31-90D
199SRC-31-60D
199SRC-31-45D
199SRC-31-30D
36" * 33"
199SRC-33-90D
199SRC-33-60D
199SRC-33-45D
199SRC-33-30D
40" * 37"
199SRC-37-90D
199SRC-37-60D
199SRC-37-45D
199SRC-37-30D
42" * 39"
199SRC-39-90D
199SRC-39-60D
199SRC-39-45D
199SRC-39-30D

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

TAPERED ROLLER CURVES
Over
All
Width		 Between
Rail
Width		 Rollers
per 90°
Curve		 Inside
Radius
Model No.
1.9 x 14 GA
Tapered
Galvanized
90°
Price
Model No.
1.9 x 14 GA
Tapered
Galvanized
60°
Price
Model No.
1.9 x 14 GA
Tapered
Galvanized
45° Price

Model No.
1.9 x 14 GA
Tapered
Galvanized
30°
Price
16" 13"

22
Single

32 1/2"
19GSRCT-13-90
19GSRCT-13-60
19GSRCT-13-45
19GSRCT-13-30
18" 15"
19GSRCT-15-90
19GSRCT-15-60
19GSRCT-15-45
19GSRCT-15-30
20" 17"
19GSRCT-17-90
19GSRCT-17-60
19GSRCT-17-45
19GSRCT-17-30
22" 19"
19GSRCT-19-90
19GSRCT-19-60
19GSRCT-19-45
19GSRCT-19-30
24" 21"
19GSRCT-21-90
19GSRCT-21-60
19GSRCT-21-45
19GSRCT-21-30
26" 23"

42
Double
19GSRCT-23-90
19GSRCT-23-60
19GSRCT-23-45
19GSRCT-23-30
28" 25"
19GSRCT-25-90
19GSRCT-25-60
19GSRCT-25-45
19GSRCT-25-30
30" 27"
19GSRCT-27-90
19GSRCT-27-60
19GSRCT-27-45
19GSRCT-27-30
34" * 31" 48"
19GSRCT-31-90
19GSRCT-31-60
19GSRCT-31-45
19GSRCT-31-30
36" * 33"
19GSRCT-33-90
19GSRCT-33-60
19GSRCT-33-45
19GSRCT-33-30
40" * 37"
19GSRCT-37-90
19GSRCT-37-60
19GSRCT-37-45
19GSRCT-37-30
42" * 39"
19GSRCT-39-90
19GSRCT-39-60D
19GSRCT-39-45
19GSRCT-39-30

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

SPECIAL DEGREE CURVE SECTIONS
Less than 30°, use 30° curve price ................plus ..................... $182.73
Less than 45°, but over 30°, use 45° curve price........ plus ........ $182.73
Less than 60°, but over 45°, use 60° curve price........ plus ........ $182.73
Less than 90°, but over 60°, use 90° curve price........ plus ........ $182.73
Prices in Light Blue we need to contact factory for lead time.
IMPORTANT NOTES...
OTHER WIDTHS NON-STANDARD WIDTHS
For "IN-BETWEEN WIDTHS", use next width plus
10%. For widths up to 63" OAW, interpolate plus 10%.
For widths over 63" OAW, contact factory. Does not
apply to tapered roller curves, contact us.		 Contact us for lead time.

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths
PRICING FOR REPLACEMENT ROLLERS
Between
Rail
Width		 Gravity
Tapered 1.9"		 1.9" Dia.x 16 Ga. 1.9" Dia.x 9 Ga. 2-1/8"Dia.
G-03054 GALV G-03922 UNPLB-10996 UNPLB-03894
13"
15"
17"
19"
21"
23"
25"
27"
31"
33"
37"
39"
IMPORTANT!-When ordering Rollers Only, BETWEEN RAIL WIDTH Dimension "BR" must be specified.
19SR & 20SR & 2-1/8" Dia.-Except as Noted
Sealed Bearings for 1.9" Dia. ONLY (013.1046)
....................Add per roller ..................... $3.95
"ABEC" Rated Bearings for 1.9 & 2.0 Only (013.1045)
Metal Housings ..........Add per roller ........ $5.72
Rollers with Grease-Packed, Sealed, Replaceable
Bearing (for Tapered Roller ONLY) (013.1091)
........................Add per roller ............... $11.23

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

STATIONARY FLOOR SUPPORTS
FOR USE WITH 1.9" AND 2.0" ROLLER SECTIONS
floor suppor PRICES FOR STATIONARY SUPPORTS INCLUDE:
Welded Frame Assembly
Adjustable Feet
Adjustable Pivot Plate
"MS" SUPPORT
Model No. Adjustment to Top of Roller Adjustment to Top of Roller Weight
(Lbs.)		 Price Up to
60" Each		 Price Up to
60" Each
1.9" & 2" Roller 2514 Roller
MSL-1
5-3/4" to 6-3/4"
6-1/16" to 7-1/16"
8
MSL-2
6-3/4" to 8-1/2"
7-1/16" to 8-13/16"
8
MSL-3
8-1/2" to 11-1/8"
8-13/16" to 11-7/16"
8
MS-1
10-3/4" to 12-1/2"
11-1/16" to 12-13/16"
8
MS-1.2
11-3/4" to 13-1/2"
12-1/16" to 13-13/16"
8
MS-1.4
12-3/4" to 14-1/2"
13-1/16" to 14-13/16"
8
MS-2
13-3/4" to 16-3/4"
14-1/16" to 17-1/16"
8-1/2
MS-3
16-3/8" to 19-3/8"
16-11/16" to 19-11/16"
11
MS-4
19-3/8" to 25-3/8"
19-11/16" to 25-11/16"
13-1/2
MS-5
23-3/8" to 29-3/8"
23-11/16" to 29-11/16"
19-1/2
MS-6
27-3/8" to 39-3/8"
27-11/16" to 39-11/16"
22-1/2
MS-7*
37-3/8" to 49-3/8"
37-11/16" to 49-11/16"
24
MS-8*
49-3/8" to 61-3/8"
49-11/16" to 61-11/16"
26-1/2
MS-9*
61-3/8" to 73-3/8"
61-11/16" to 73-11/16"
29-1/2
MS-10*
73-3/8" to 85-3/8"
73-11/16" to 85-11/16"
35-1/2
MS-11*
83-3/8" to 95-3/8"
83-11/16" to 95-11/16"
38-1/2
MS-12*
95-3/8" to 107-3/8"
95-11/16" to 107-11/16"
42
*Price Includes Knee Braces
IMPORTANT NOTES.....
4 in. Dia. 6 in. Dia.
CASTERS Steel Rubber Steel Rubber
Extra Per Support*
CASTERS
Are available in either Rigid or Swiveltype - specify.
WHEN ORDERING SUPPORTS
*Price Includes Knee Braces.
Specify Overall Conveyor Width.
CAPACITY DATA CASTERS ARE RECOMMENDED FOR MS AND
LS TYPE SUPPORTS ONLY.
LS & MS .......................... 1500 lbs. ea.
Caster Foot ..................Per Support ........... $60.01
Floor Lock ..........................Each.............. $208.62 (Customer supplied caster must match our caster bolt pattern)
Knee Braces ......................Per Pair ......... $33.07 *Available on Swivel Caster Only.
Single Center Leg..................................... $66.56 ** **Center legs available from stockyards, same sizes as
LS-MS shown in chart above.
Brakes for Casters (Add-On Per Support)*:
4" Dia. Caster ....................................... $43.16
6" Dia. Caster ....................................... $138.01
