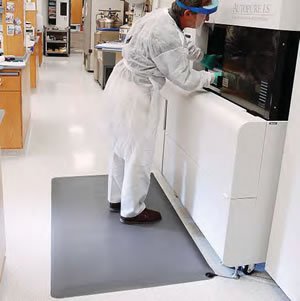

Ideal for manufacturing and commercial areas where static electricity can pose a problem. A carbon-impregnated polyester scrim embedded in the surface ensures speedy dissipation of static electricity, and a Nitricell® sponge base ensures employee comfort and productivity.
• 2X the resilience and 3X the life of typical sponges • Lay-flat design and up to 20% more standing area than look-a likes • Attached grounding snap
Specs:
Uses Dry areas at risk from ESD static electricity
Compound 1/8"-thick vinyl surface bonded to a 3/8"-thick Nitricell® sponge base
Edges Safety beveled
Surface Resistivity EOS/ESD S7.1 RTT - 1 x 107 to 5 x 108 ohm
RTG - 1 x 107 to 5 x 108 ohm
Coefficient of Friction .87 Dry, .61 Wet per ASTM F1677
Flammability (Surface) "A" Rating per MVSS 302
Flammability (Sponge) Burned for <5 seconds per MIL-P12420C
Tabor Abrasion < 1% lost @ 1,000 cycles per Fed Std. 191
Color Gray (GY)
Grounding snap is attached to lower left hand corner of each mat. See bottom of page for accessories.
Order Online
Click the button of the item you wish to purchase.
Grounding snap is attached to lower left hand corner of each mat. See bottom of page for accessories.
ACCESSORIES
15’ Ground Cord No. 793.15Cord
Use the cord to connect all ESD tabletop and floors mats to a building ground. The solderless terminal can be connected to an electrical outlet using the screw in the outlet cover.
Specs:
Uses To connect all ESD mats to a building ground
Construction Molded-in male snap fastener on one end and solderless terminal on the other.
Resistivity Integral one megohm resistor (1 x 106 ohm)
Snap Conforms to 10mm snaps
Order Online
Click the button of the item you wish to purchase.
Made for workers wearing insulative shoes, the Heel Grounder allows static electricity to pass from the worker to the ESD matting or flooring One size "fits all" and the Velcro® loop allows for easy attachment. Allow the fabric strip to touch the workers skin for best performance.
Specs:
Uses To allow shoes to conduct static discharge
Construction Two-layer laminated rubber sole with Velcro® loop attachment
Resistivity One megohm resistor (1 x 106 ohm)
Width 1.5"
Thickness 0.060"
