WELDED ALUMINUM HATCH ACCESS WITH
FLUSH TOP TREAD SHIPS LADDER -
60° IBC DESIGN
Hatch Access Models
WELDED ALUMINUM STAIRWAYS
SHIPS LADDER DESIGN
STRONG-ATTRACTIVE-WEATHER
RESISTANT
Acceptable Usage: For industrial/commercial maintenance
access and industrial/commercial storage access. This is a
steep incline stair not acceptable for public access, office
use, or residental applications.
STEEP INCLINE MILL FINISH ALUMINUM SHIPS LADDERS
• Quality engineered to your specific height requirement at a nominal 60° angle of rise.
• Designed for safety and convenience.
• Heavy duty aluminum I bar grating stair treads won't sag or dish
(supplied as standard).
• Factory welded handrails of 1 1/2" x .125 aluminum (6063-T52) square tubing.
• 10" x 2.6" aluminum (6061-T6511) structural channel stringers.
• Fire proof construction.
• Standard 24" wide treads, 29 1/4" overall stair width.
Other widths available upon request.
• Tread depth is 8 5/8" I bar grating treads with nosing.
• Stainless Steel assembly hardware included.
• Min 5" tread run / 9 1/2" max riser height.
IBC Compliant safe access with minimum space requirement based on IBC 1011.15
parameters (see below)

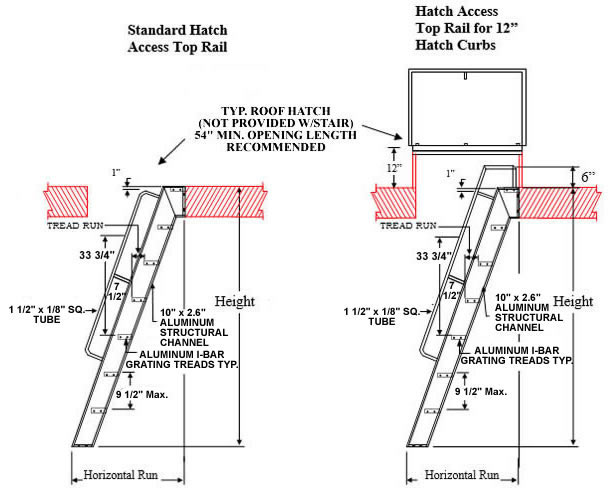

hatch access ships ladder
SAFETY WARNING: These
ladders are to be ascended and
descended with the user always
facing the ladder. Never descend
the ladder facing away from the
ladder.
Welded Top Mounting Plates With Lag Holes
I Bar Aluminum Treads
welded footplate with lag holes
Flush Top Treads
flush top tread
IBC CONFORMANCE
See Details Below Price Tables
Welded Footplate with
Lag Holes
Close-up of Flush Top Tread
CUSTOM SIZES - SAME DAY QUOTES
Custom sizes and configurations are readily available. We provide same day price quotes if you require a special stair
angle, specific tread rise/run, or a maximum horizontal stair run to satisfy available floor space constraints.

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

PRICES FOR FLUSH TREAD HATCH ACCESS MODELS
Type
Model No.		 (A) Height Range (B)
Horizontal
Run		 Tread
Width		 Nominal
Overall
Width		 Price with I Bar Grating Treads
Lower
Ht. (in)		 Upper
Ht. (in)
36"
41"
34 3/4 - 37 5/8
24"
29 1/4"
$2,579
42"
47"
38 1/4 - 41 1/8
24"
29 1/4"
$2,718
48"
53"
41 3/4 - 44 5/8
24"
29 1/4"
$2,857
54"
59"
45 1/8 - 48 1/16
24"
29 1/4"
$2,997
60"
65"
48 5/8 - 51 9/16
24"
29 1/4"
$3,136
66"
71"
52 1/8 - 53 9/16
24"
29 1/4"
$3,276
72"
77"
55 9/16 - 58 7/16
24"
29 1/4"
$3,415
78"
83"
59 1/16 - 61 15/16
24"
29 1/4"
$3,555
84"
89"
62 1/2 - 65 7/16
24"
29 1/4"
$3,694
90"
95"
65 15/16 - 68 15/16
24"
29 1/4"
$3,834
96"
101"
69 7/16 - 72 5/16
24"
29 1/4"
$4,034
102"
107"
72 15/16 - 75 13/16
24"
29 1/4"
$4,177
108"
113"
76 7/16 - 79 1/4
24"
29 1/4"
$4,371
114"
119"
79 13/16 - 82 3/4
24"
29 1/4"
$4,514
120"
125"
83 5/16 - 86 3/16
24"
29 1/4"
$4,657
126"
131"
86 13/16 - 89 5/8
24"
29 1/4"
$4,799
132"
137"
90 1/4 - 93 1/8
24"
29 1/4"
$4,942
138"
143"
93 11/16 - 96 5/8
24"
29 1/4"
$5,085
144"
149"
97 1/8 - 100 1/8
24"
29 1/4"
$5,228
150"
155"
100 5/8 - 103 1/2
24"
29 1/4"
$5,371
156"
161"
104 1/8 - 107
24"
29 1/4"
$5,514
162"
167"
107 5/8 - 110 7/16
24"
29 1/4"
$5,656
168"
173"
111 - 113 15/16
24"
29 1/4"
$5,799
174"
179"
114 1/2 - 117 7/16
24"
29 1/4"
$5,942
180"
185"
118 - 120 13/16
24"
29 1/4"
$6,085
186"
191"
121 7/16 - 124 5/16
24"
29 1/4"
$6,228
SAFETY WARNING: These ladders are to be ascended and descended with the user always facing the ladder.
Never descend the ladder facing away from the ladder.
IBC 1011.15 CONFORMANCE
1011.15 Ships ladders. Ships ladders are permitted to be used in Group I-3 as a component of a means of egress
to and from control rooms or elevated facility observation stations not more than 250 square feet (23 m²) with not
more than three occupants and for access to unoccupied roofs. The minimum clear width at and below the handrails
shall be 20 inches (508 mm)
1011.15.1 Handrails of ships ladders. Handrails shall be provided on both sides of ships ladders.
1011.15.2 Treads of ships ladders. Ships ladders shall have a minimum tread depth of 5 inches (127 mm).
The tread shall be projected such that the total of the tread depth plus the nosing projection is not less than
8 1/2 inches (216 mm). The maximum riser height shall be 9 1/2 inches (241 mm)
