FIXED STEEL LADDERS - SERIES F AND SERIES M
|
| |
|
|
|
|
|
|
|
FIXED STEEL LADDERS are designed for use where safe, solid vertical climbing access is required.
Series F and Series M modular fixed steel ladders are available with and without walk-thru handrails
at the top landing surface. Standard fixed and walk-thru models can be used up to 24' without safety
cages. OSHA requires safety cages on ladder heights exceeding 24'. Separate cages are offered for
updating older ladders to current safety standards. All fixed ladders meet applicable OSHA and
ANSI standards. |
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
| |
 |
|
 |
|
|
Gray powder coat finish is standard,
yellow is optional. |
| |
|
|
|
|
|
| |
|
|
|
Stainless Steel Construction
also available |
|
| |
|
|
|
|
|
| |
|
|
NOTE: Every new fixed ladder installation
that extends more than 24 feet above a
lower level must be equipped with a
personal fall arrest system or a ladder
safety system. |
| |
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
 |
|
 |
|
SERIES F FIXED LADDERS:
Ladders are heavy duty welded
assemblies |
|
FIXED LADDERS WITH
SAFETY CAGES:
|
| |
|
|
Standard fixed steel ladders are
combined with safety cage
protection. They are available in
10' through 29' sizes and are ideal
for hatch-way or side step landing
access. |
| |
|
|
|
|
|
| |
|
SERIES M MODULAR FIXED
LADDERS: Ladders are heavy
duty sub-assemblies, no section is
greater than 7' in length. |
|
| |
|
|
|
|
|
| |
|
|
CONSTRUCTION
FEATURES: |
|
|
| |
|
|
|
|
|
|
| |
|
|
|
|
|
CAGE FEATURES: |
| |
|
|
|
|
|
|
| |
|
|
|
|
|
|
 Cages have flared bottom
opening for easy entry. |
| |
|
|
Side members are 1/4"x2"x2"
steel angle. Climbing rungs are
3/4" corrugated steel round
rungs space on 12" centers.
Stand-off brackets are 7". |
|
|
|
| |
|
|
|
|
|
Left or right side step access
cage designs are available at
no charge. |
| |
|
|
|
|
|
Cage begins 7' from bottom
of ladder. |
| |
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
| |
|
All: gray powder coat finish standard, yellow also available. |
| |
|
|
|
|
|
|
|
| |
|
Stainless Steel Construction
also available |
|
|
|
| |
|
|
|
|
|
|
|
|
|
SERIES "M" Modular Fixed Ladder Construction
|
|
SERIES "F" Construction Features |
 |
|
| |
 |
Click the button of the item you wish to purchase. Contact us for special lengths
|
PRICING FOR FIXED STEEL LADDERS - SERIES F AND
SERIES M - STD & W/CAGE
|
| |
| SPECIFICATIONS |
STANDARD |
WITH CAGE |
OVERALL
LENGTH |
LENGTH:
TOP TO
BOTTOM
RUNG |
NO.
RUNGS |
SERIES
"F"
MODEL
NO. |
SHPG.
WT. |
PRICE
(Powder
Coat
Finish) |
PRICE
(T-304
Stainless) |
SERIES "M" MODEL NO. |
PRICE
(Powder
Coat
Finish) |
PRICE
(T-304
Stainless) |
SERIES
"F"
MODEL
NO. |
SHPG.
WT. |
PRICE
(Powder
Coat
Finish) |
PRICE
(T-304
Stainless) |
| 3' 3" |
3' |
4 |
F4S |
41 |
|
|
CLICK ON SERIES "F" MODEL NO.
FOR DIMENSION DRAWINGS
|
| 4' 3" |
4' |
5 |
F5S |
50 |
|
|
| 5' 3" |
5' |
6 |
F6S |
58 |
|
|
| 6' 3" |
6' |
7 |
F7S |
66 |
|
|
| 7' 3" |
7' |
8 |
F8S |
75 |
|
|
| 8' 3" |
8' |
9 |
F9S |
87 |
|
|
| 9' 3" |
9' |
10 |
F10S |
95 |
|
|
| 10' 3" |
10' |
11 |
F11S |
104 |
|
|
M11SC |
|
|
F11SC |
202 |
|
|
| 11' 3" |
11' |
12 |
F12S |
112 |
|
|
M12SC |
|
|
F12SC |
223 |
|
|
| 12' 3" |
12' |
13 |
F13S |
120 |
|
|
M13SC |
|
|
F13SC |
243 |
|
|
| 13' 3" |
13' |
14 |
F14S |
129 |
|
|
M14SC |
|
|
F14SC |
260 |
|
|
| 14' 3" |
14' |
15 |
F15S |
137 |
|
|
M15SC |
|
|
F15SC |
274 |
|
|
| 15' 3" |
15' |
16 |
F16S |
149 |
|
|
M16SC |
|
|
F16SC |
299 |
|
|
| 16' 3" |
16' |
17 |
F17S |
158 |
|
|
M17SC |
|
|
F17SC |
318 |
|
|
| 17' 3" |
17' |
18 |
F18S |
166 |
|
|
M18SC |
|
|
F18SC |
338 |
|
|
| 18' 3" |
18' |
19 |
F19S |
174 |
|
|
M19SC |
|
|
F19SC |
346 |
|
|
| 19' 3" |
19' |
20 |
F20S |
183 |
|
|
M20SC |
|
|
F20SC |
368 |
|
|
| 20' 3" |
20' |
21 |
- |
- |
- |
- |
M21SC |
|
|
F21SC |
388 |
|
|
| 21' 3" |
21' |
22 |
|
M22SC |
|
|
F22SC |
406 |
|
|
| 22' 3" |
22' |
23 |
M23SC |
|
|
F23SC |
421 |
|
|
| 23' 3" |
23' |
24 |
M24SC |
|
|
F24SC |
442 |
|
|
| 24' 3" |
24' |
25 |
M25SC |
|
|
F25SC |
462 |
|
|
| 25' 3" |
25' |
26 |
M26SC |
|
|
F26SC |
482 |
|
|
| 26' 3" |
26' |
27 |
M27SC |
|
|
F27SC |
508 |
|
|
| 27' 3" |
27' |
28 |
M28SC |
|
|
F28SC |
528 |
|
|
| 28' 3" |
28' |
29 |
M29SC |
|
|
F29SC |
548 |
|
|
| 29' 3" |
29' |
30 |
M30SC |
|
|
F30SC |
568 |
|
|
|
| |
| OSHA NOTE: Heights exceeding 30' require a standoff platform (see option model SP) |
| SHIPPING NOTE: All 15 thru 28 rung Series F models with cages ship in 2 sections. All 29 and 30 rung models ship in 3 sections. |
|
 |
|
 |
|
|
|
|
|
|
|
|
| |
|
FIXED LADDER WITH
WALK-THRU HANDRAILS:
|
|
|
FIXED LADDER WITH
WALK-THRU HANDRAILS
AND SAFETY CAGES:
|
| |
|
Ladders are designed for
applications where safe landing
access is required. They are
one-piece welded assemblies for
use in applications less than 20'
in vertical height. |
|
|
| |
|
|
|
Designed for safe landing access
and available from 10' to 29'.
Cages and walk-thru handrails
extend 42" above landing surface. |
| |
|
|
|
|
|
| |
|
|
|
|
CAGE FEATURES: |
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
Cages have flared bottom
opening for easy entry. |
| |
|
|
CONSTRUCTION FEATURES: |
|
|
| |
|
|
Side members are 1/4"x2"x2"
steel angle. 3/4" corrugated steel
round climbing rungs on 12"
centers. Stand-off brackets
are 7". |
|
|
| |
|
|
|
|
Cage begins 7' from bottom
of ladder. |
| |
|
|
|
|
|
| |
|
|
Walk-thru handrails extend 42"
above landing surface.
Mounting brackets included. |
|
|
|
| |
|
|
Welded. |
|
|
|
| |
|
|
|
|
|
|
|
|
| |
|
All: gray powder coat finish standard, yellow also available. |
| |
|
|
|
|
|
|
|
|
| |
|
Stainless Steel Construction
also available |
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
PRICING FOR FIXED STEEL LADDERS - SERIES F AND SERIES M -
WALK-THRU RAIL & W/WALK THRU & CAGE
|
| SPECIFICATIONS |
STANDARD |
WITH CAGE |
|
|
|
OVERALL
LENGTH |
LENGTH:
TOP TO
BOTTOM
RUNG |
NO.
RUNGS |
SERIES
"F"
MODEL
NO. |
SHPG.
WT. |
PRICE
(Powder
Coat
Finish) |
PRICE
(T-304
Stainless) |
SERIES
"M"
MODEL
NO. |
PRICE
(Powder
Coat
Finish) |
PRICE
(T-304
Stainless) |
SHPG.
WT. |
SERIES
"F"
MODEL
NO. |
PRICE
(Powder
Coat
Finish) |
PRICE
(T-304
Stainless) |
| 6' 8" |
3' |
4 |
F4W |
68 |
|
|
CLICK ON SERIES "F" MODEL NO.
FOR DIMENSION DRAWINGS |
| 7' 8" |
4' |
5 |
F5W |
77 |
|
|
| 8' 8" |
5' |
6 |
F6W |
85 |
|
|
| 9' 8" |
6' |
7 |
F7W |
93 |
|
|
| 10' 8" |
7' |
8 |
F8W |
102 |
|
|
|
|
|
212 |
F8WC |
|
|
| 11' 8" |
8' |
9 |
F9W |
114 |
|
|
|
|
|
224 |
F9WC |
|
|
| 12' 8" |
9' |
10 |
F10W |
122 |
|
|
|
|
|
232 |
F10WC |
|
|
| 13' 8" |
10' |
11 |
F11W |
131 |
|
|
M11WC |
|
|
241 |
F11WC |
|
|
| 14' 8" |
11' |
12 |
F12W |
139 |
|
|
M12WC |
|
|
262 |
F12WC |
|
|
| 15' 8" |
12' |
13 |
F13W |
147 |
|
|
M13WC |
|
|
282 |
F13WC |
|
|
| 16' 8" |
13' |
14 |
F14W |
158 |
|
|
M14WC |
|
|
299 |
F14WC |
|
|
| 17' 8" |
14' |
15 |
F15W |
166 |
|
|
M15WC |
|
|
313 |
F15WC |
|
|
| 18' 8" |
15' |
16 |
F16W |
178 |
|
|
M16WC |
|
|
338 |
F16WC |
|
|
| 19' 8" |
16' |
17 |
F17W |
185 |
|
|
M17WC |
|
|
357 |
F17WC |
|
|
| 20' 8" |
17' |
18 |
F18W |
193 |
|
|
M18WC |
|
|
377 |
F18WC |
|
|
| 21' 8" |
18' |
19 |
F19W |
201 |
|
|
M19WC |
|
|
385 |
F19WC |
|
|
| 22' 8" |
19' |
20 |
F20W |
210 |
|
|
M20WC |
|
|
407 |
F20WC |
|
|
| 23' 8" |
20' |
21 |
- |
- |
- |
- |
M21WC |
|
|
427 |
F21WC |
|
|
| 24' 8" |
21' |
22 |
|
M22WC |
|
|
445 |
F22WC |
|
|
| 25' 8" |
22' |
23 |
M23WC |
|
|
460 |
F23WC |
|
|
| 26' 8" |
23' |
24 |
M24WC |
|
|
481 |
F24WC |
|
|
| 27' 8" |
24' |
25 |
M25WC |
|
|
501 |
F25WC |
|
|
| 28' 8" |
25' |
26 |
M26WC |
|
|
521 |
F26WC |
|
|
| 29' 8" |
26' |
27 |
M27WC |
|
|
547 |
F27WC |
|
|
| 30' 8" |
27' |
28 |
M28WC |
|
|
567 |
F28WC |
|
|
| 31' 8" |
28' |
29 |
M29WC |
|
|
587 |
F29WC |
|
|
| 32' 8" |
29' |
30 |
M30WC |
|
|
607 |
F30WC |
|
|
|
| OSHA NOTE: Heights exceeding 30' require a standoff platform (see option model SP) |
| SHIPPING NOTE: All 15 thru 25 rung Series F models with cages ship in 2 sections. All 26 thru 30 rung models ship in 3 sections. |
| HOT DIP GALVANIZED FINISH OR STAINLESS STEEL CONSTRUCTION CAN BE QUOTED. |
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
ACCESSORIES
|
Our fixed steel ladder accessories are designed to provide an additional measure of safety or security for any fixed
steel ladder. |
| |
|
|
 |
|
STANDOFF LANDING PLATFORM:
|
| |
Standoff landing platforms with offset caged ladders are
required by OSHA Standard 1910.27 at 30' maximum
height intervals. These rugged, pre-engineered platforms
are constructed with left or right entries as required. |
| |
|
| |
OPTION SP ................................................................ $1,038
|
| |
Shipping wt. 165 lbs. |
| |
|
|
 |
|
|
|
 |
|
LG |
|
| |
|
|

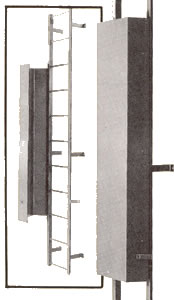

SECURITY LADDER
GUARD: |
| |
|
|
The ladder guard is
mounted directly over
the ladder climbing rungs
to prevent unauthorized
use. It is available in 6'
lengths. The guard has
a one piece piano hinge,
and is furnished with
lock-open and lock-
closed hasps. |
| |
|
|
|
|
| |
|
|
OPTION LG-6
.............................$744
|
| |
|
|
Shipping wt. 62 lbs. |
| |
|
|
|
| |
|
|
|
|
|
SECURITY CAGE ENTRY GATE:
|
|
|
|
|
|
The cage security gate is designed to prevent unau-
thorized entry into the bottom of the ladder cage.
Doors have lockable hasp for complete security. |
|
|
|
|
|
| OPTION CG .......................................................... $385
|
|
|
|
|
|
| Shipping wt. 20 lbs. |
|
|
|
|
|
| |
|
|
|
|
|
|
| |
