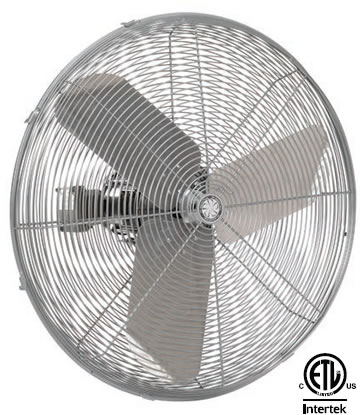

ASSEMBLED CIRCULATOR HEADS & MOUNTS
circulator heads & mounts
DIMENSIONS
24"
30" 		27" Diameter x 14.5" Depth
33.5" Diamenter x 14.5" Depth
FEATURES
• Pull chain switch
• SJT type 3 conductor, 12’ long cord
• Steel hub/spider aluminum paddle blades
• Coated steel guards
• Meets OSHA standards
MOTOR SPECIFICATIONS
• 2-Speed
• 1 Phase, 120V
• Ball bearing
• Frame size: 48		 • Totally enclosed
• Permanent split capacitor
• Permanently lubricated
• 1/2" Shaft
PRODUCT SPECIFICATIONS
• Oscillating model oscillates in a 90° arc or can be
locked in a fixed position
• Metal gears in the oscillating mechanism allow the
fan to operate at a maximum 30° downward tilt
STANDARD MODELS
H.P.
BLADE
SIZE
MFG
MODEL
NUMBER
MFG
CATALOG
NUMBER
FAN
HEAD
TYPE
CFM*
VELOCITY
PROFILE
RPM
AMPS
WT.
(LBS)
CFM / Area
Sq Ft
Industrial
1/4
24"
ACH 24
7961602
STATIONARY
3800 / 3400
6000 / 240
1100 / 800
2.5
40
30"
ACH 30
7961702
4300 / 3800
7200 / 250
1100 / 800
2.7
44
1 Year Warranty
High
Performance
1/3
24"
IHP 24-H
7989802
STATIONARY
4300 / 3900
6000 / 240
1100 / 800
2.8
40
30"
IHP 30-H
7989902
5400 / 4700
7200 / 250
1100 / 800
3
44
3 Year Warranty
Heavy Duty
1/2
24"
HDH 24-G
8539202
STATIONARY
5600 / 4900
7500 / 260
1100 / 800
3.5
44
30"
HDH 30-G
8528602
6800 / 6000
8000 / 270
1100 / 800
4
48
5 Year Warranty
Industrial
Oscillating
1/4
20"
ACH 20-O
8684802
OSCILLATING
3000 / 2600
5000 / 200
1100 / 900
2.4
43
24"
ACH 24-O
7963602
3800 / 3400
6000 / 240
1100 / 800
2.5
44
30"
ACH 30-O
7963702
4300 / 3800
7200 / 250
1100 / 800
2.7
48
1 Year Warranty
*Measured 2 feet from face of fan

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

PRICING FOR ASSEMBLED CIRCULATOR HEADS
SIZE
Mfg.
Cat. No.
MODEL
PRICE
Mfg.
Cat. No.
MODEL
PRICE
Mfg.
Cat. No.
MODEL
PRICE
Mfg.
Cat. No.
MODEL
PRICE
20"
-
-
-
-
-
-
-
-
-
8684802
$487
24"
8539202
$603
7989802
$460
7961602
$361
7963602
$554
30"
8528602
$622
7989902
$481
7961702
$372
7963702
$575
SIX FACTORY ASSEMBLED & TESTED FAN MOUNTS THAT CAN BE USED WITH ANY OF THE
NON-OSCILLATING HEADS
INDUSTRIAL MOUNTS:
pedestal fans wall mount fans ibeam mount for fans pole mount for fans
suspension mount fan
ceiling mount for fans

ATTACHES TO
4", 6" OR 8" POLES.
STANDARD MODELS
fan pedestal ibeam mount for fans ceiling mount for fan suspension mount for fans
optional wheel kit
SUSPENSION
MOUNT
CEILING
MOUNT
wall mounts for fan
OPTIONAL WHEEL KIT
WALL MOUNT
• Pedestal pole adjusts the center of fan from 52" to 78" and bolts to 27" diameter steel dome base with
5 carriage bolts
• I-beam mount & ceiling mount require 1-1/2" or longer pipe nipple for assembly (not supplied)
• Pole mount attaches to 4", 6", or 8" with U-bolts (not supplied)
• Oscillating motors can only be used with any mount when motor can be mounted in the upright position

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

PRICING FOR CIRCULATOR MOUNTS
MOUNT TYPE Model
Number
Mfg.
Catalog Number
Shipping
Weight
Price
Pedestal
761802
34 lbs.
$198
Wall Mount
7961902
3 lbs.
$76
I-Beam Mount
7962002
9 lbs.
$150
Ceiling Mount
7962102
3 lbs.
$99
Suspension Mount
7962202
2 lbs.
$68
Pole Mount
8681802
5 lbs.
$109
Optional Wheel Kit 868136 4 lbs.
$92
