5FT100 CAPTAIN® 10,000 SERIES
STATIONARY DAVIT CRANES
UNMATCHED LIFTING CAPACITY
with Superior Reach
The 5FT100 Captain Series stationary davit crane is engineered for extraordinary lifting power, handling loads up to 11,000 pounds (5000 kg) with ease. Its extended capabilities
include a hook height and reach of over 10 feet (3 m), making it ideal for demanding tasks in marine, industrial, and energy applications. The integral slewing drive ensures
smooth, 360-degree rotation under load, allowing precise positioning of heavy equipment. Featuring a durable epoxy finish, the 5FT100 resists corrosion in the harshest
environments for long-lasting performance. Available with multiple winch options the crane provides versatility to match your operational needs.
360° Rotation &
Powerful Functionality
- Slewing drive facilitates smooth,
360-degree rotation under heavy
loads for precise placement. - Telescoping boom offers 3
extended positions for increased
versatility. - Compatible with CE standards.
Crane Features & Configurations
- Robust epoxy finish standard,
ensuring superior resistance to
corrosion and wear. - Available winches include manual,
electric, pneumatic, and hydraulic
models in various voltages to meet a
variety of needs.

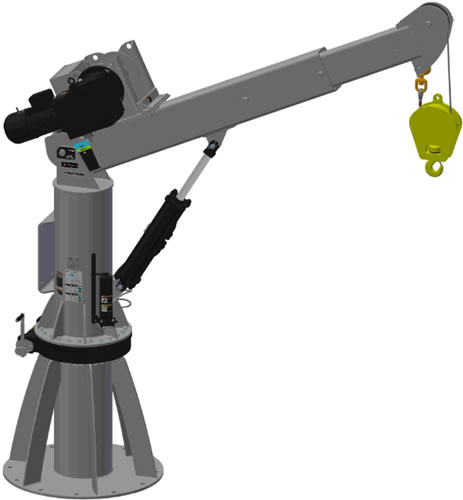

Product Shown:
5FT100HX-E4X
STANDARD CONFIGURATIONS
| Series | Description | Up To Capacity |
| 5FT100HX-M1X | Gray epoxy crane with hydraulic cylinder and M492BEGRA spur gear hand winch |
11,000 lbs/5000 kg |
| 5FT100HX5-M1X5 | Safety yellow epoxy crane with hydraulic cylinder and M492BEYEL spur gear hand winch |
11,000 lbs/5000 kg |
| 5FT100HX-E3X | Gray epoxy crane with hydraulic cylinder and 4HWF6M helical-worm gear power winch |
11,000 lbs/5000 kg |
| 5FT100HX-E3X5 | Saftey yellow epoxy crane with hydraulic cylinder and 4HWF6M helical worm gear power winch |
11,000 lbs/5000 kg |
| 5FT100HX-E4X | Gray epoxy crane with hydraulic cylinder and 4HBN7M helical-bevel power winch |
11,000 lbs/5000 kg |
| 5FT100HX-E4X5 | Safety yellow crane with hydraulic cylinder and 4HBN7M helical-bevel power winch |
11,000 lbs/5000 kg |
Built for Durability & Extreme Conditions
Exceptional Versatility
• Heavy-duty steel construction meets ASTM standards for
strength and reliability.
• Durable epoxy finish offers the ultimate in corrosion
resistance, suitable for saltwater and other harsh environments.
• Standard color is gray.
Safety yellow and other color options also available.
Note: Requires two-part line kit sold separately.
The 5FT100 is the go-to solution for lifting applications requiring
immense power, precise control, and long-lasting durability. Its
innovative design and advanced features make it an essential tool
for industries such as marine, construction, oil and gas, and
water/wastewater management.

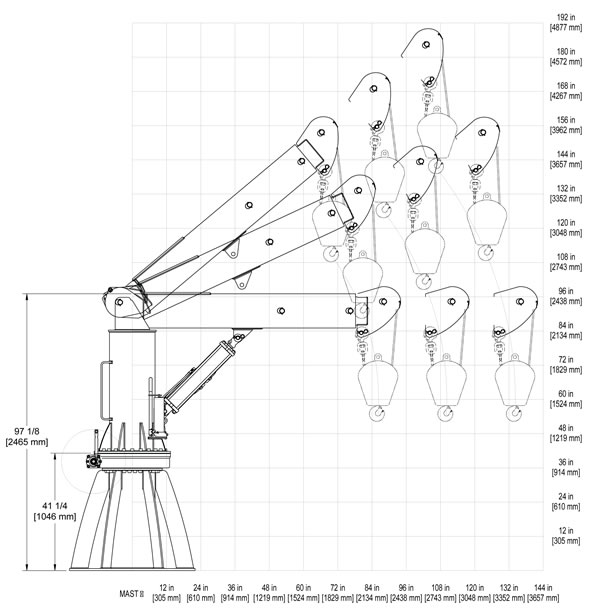

PERFORMANCE
IMPERIAL
| BOOM POSITION | 1ST LAYER LOAD RATING* | HOOK REACH | HOOK HEIGHT** |
| LB | IN | IN | |
| A-1 | 11,000 | 86 | 56 |
| A-2 | 9,000 | 110 | 56 |
| A-3 | 7,500 | 134 | 56 |
| B-1 | 11,000 | 80 | 92 |
| B-2 | 11,000 | 101 | 102 |
| B-3 | 10,000 | 123 | 112 |
| C-1 | 11,000 | 70 | 112 |
| C-2 | 11,000 | 88 | 27 |
| C-3 | 10,000 | 107 | 142 |
METRIC
| BOOM POSITION | 1ST LAYER LOAD RATING* | HOOK REACH | HOOK HEIGHT** |
| KG | MM | MM | |
| A-1 | 5,000 | 2,184 | 1,422 |
| A-2 | 4,080 | 2,794 | 1,422 |
| A-3 | 3,400 | 3,403 | 1,422 |
| B-1 | 5,000 | 2,032 | 2,336 |
| B-2 | 5,000 | 2,565 | 2,590 |
| B-3 | 4,535 | 3,124 | 2,844 |
| C-1 | 5,000 | 1,778 | 2,844 |
| C-2 | 5,000 | 2,235 | 3,225 |
| C-3 | 4,535 | 2,718 | 3,606 |
*Crane maximum load rating. Load rating may decrease as layers of rope wind onto the winch drum. Refer to winch specific information.
**Hook heights shown with optional 5FT100TPL two-part line kit.
Information is for reference only and subject to change without notice.
Contact us for non-standard product requirements.
Captain 10,000 5FT100 Series
Lift Below Floor¹ Level
*Requires two-part line kit sold separately.
| LIFT BELOW FLOOR² | WINCH OPTION | |||||
| MIN (C3) | MAX (C1) | WIRE ROPE DIA. | WIRE ROPE LENGTH | M1 | E3 | E4 |
| FEET | FEET | INCHES | FEET | POUNDS | ||
| -3 | 2 | 7/16 | 45 | 11,000* | 11,000* | 11,000* |
| 5 | 10 | 7/16 | 60 | 11,000* | 11,000* | 11,000* |
| 12 | 17 | 7/16 | 75 | 11,000* | 9800* | 11,000* |
| 20 | 25 | 7/16 | 90 | 11,000* | 9800* | 11,000* |
| 35 | 40 | 7/16 | 120 | 11,000* | 9000* | 11,000* |
| 50 | 55 | 7/16 | 150 | 11,000* | 8200* | 11,000* |
| 75 | 80 | 7/16 | 200 | 11,000* | - | 11,000* |
| 100 | 105 | 7/16 | 250 | - | - | - |
| -2 | 4 | 1/2 | 36 | 7600 | 5500 | 7200 |
| 7 | 13 | 1/2 | 45 | 7600 | 5300 | 7200 |
| 22 | 28 | 1/2 | 60 | 7600 | 5300 | 7200 |
| 37 | 43 | 1/2 | 75 | 7600 | 4700 | 7200 |
| 52 | 58 | 1/2 | 90 | 7600 | 4700 | 6800 |
| 82 | 88 | 1/2 | 120 | 7600 | 4300 | 6800 |
| 112 | 118 | 1/2 | 150 | 7000 | - | 6200 |
| 162 | 168 | 1/2 | 200 | - | - | - |
| -2 | 4 | 9/16 | 36 | - | 5200 | 7200 |
| 7 | 13 | 9/16 | 45 | - | 5200 | 7200 |
| 22 | 28 | 9/16 | 60 | - | 5200 | 7200 |
| 37 | 43 | 9/16 | 75 | - | 4600 | 7200 |
| 52 | 58 | 9/16 | 90 | - | 4100 | 6600 |
| 82 | 88 | 9/16 | 120 | - | 4100 | 6600 |
| 112 | 118 | 9/16 | 150 | - | - | - |
| -2 | 4 | 5/8 | 36 | - | - | 7200 |
| 7 | 13 | 5/8 | 45 | - | - | 7200 |
| 22 | 28 | 5/8 | 60 | - | - | 7200 |
| 37 | 43 | 5/8 | 75 | - | - | 7200 |
| 52 | 58 | 5/8 | 90 | - | - | 6400 |
| 82 | 88 | 5/8 | 120 | - | - | 5800 |
| 112 | 118 | 5/8 | 150 | - | - | - |
¹Performance characteristics are for standard products. Non-standard products may vary from the original design. Contact us for this information.
²Lift below floor level varies depending on boom position and base configuration. For longer lifts, please contact factory.
- When ordering, please specify the crane model, winch option, and finish.
PRICING FOR CAPTAIN 10,000 5FT100 SERIES - STATIONARY DAVIT CRANE
| MODEL | DESCRIPTION | WEIGHT (LBS) | PRICE |
| Popular Configurations | |||
| 5FT100HX-E3ELX | up to 11,000 lb cap. with 4HWF6MX-KEL limit switch ready helical worm-gear electric winch and hydraulic cylinder-gray epoxy crane | 3060 | $63,436.00 |
| 5FT100HX-E4ELX | up to 11,000 lb cap. with 4HBN7MX-KEL limit switch ready helical bevel-gear electric winch and hydraulic cylinder-gray epoxy crane | 3125 | $65,113.00 |
| 5FT100 Series Crane Only | |||
| 5FT100H | up to 11,000 lb capacity - with hydraulic cylinder - red enamel | 2576 | $35,808.00 |
| 5FT100HX | up to 11,000 lb capacity - with hydraulic cylinder - gray epoxy crane | 2576 | $43,914.00 |
| 5FT100HX5 | up to 11,000 lb capacity - with hydraulic cylinder - safety yellow epoxy crane | 2576 | $43,914.00 |

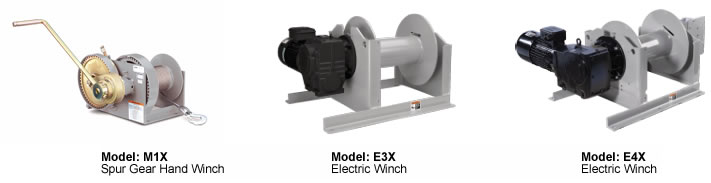

Winch Configurations
| MODEL | DESCRIPTION | WEIGHT (LBS) | PRICE |
| Winch Options (sold separately) | |||
| M1 | M492B spur gear hand winch only - enamel red | 167 | $4,004.00 |
| M1X | M492BEGRA spur gear hand winch only - epoxy gray finish-(Not available for use with the 5FT40H crane) | 167 | $5,047.00 |
| M1X5 | M492BEYEL spur gear hand winch only - safety yellow epoxy finish | 167 | $5,047.00 |
| E3DL | 4HWF6M-KDL 230/3/60 VAC with control enclosure, 10' pendant - red enamel finish | 3060 | $17,727.00 |
| E3DLX | 4HWF6MX-KDL 230/3/60 VAC with control enclosure, 10' pendant - epoxy gray finish | 3060 | $20,500.00 |
| E3DLX5 | 4HWF6MX5-KDL 230/3/60 VAC with control enclosure, 10’ pendant—epoxy safety yellow finish | 3060 | $20,500.00 |
| E3EL | 4HWF6M-KEL 460/3/60 VAC with control enclosure, 10’ pendant—red enamel finish | 3060 | $17,727.00 |
| E3ELX | 4HWF6MX-KEL 460/3/60 VAC with control enclosure, 10’ pendant—epoxy gray finish | 3060 | $20,500.00 |
| E3ELX5 | 4HWF6MX5-KEL 460/3/60 VAC with control enclosure, 10’ pendant—epoxy safety yellow finish | 3125 | $20,500.00 |
| E4DL | 4HBN7M-KDL 230/3/60 VAC with control enclosure, 10’ pendant—red enamel finish | 3125 | $18,555.00 |
| E4DLX | 4HBN7MX-KDL 230/3/60 VAC with control enclosure, 10’ pendant—epoxy gray finish | 3125 | $21,199.00 |
| E4DLX5 | 4HBN7MX5-KDL 230/3/60 VAC with control enclosure, 10’ pendant—epoxy safety yellow finish | 3125 | $21,199.00 |
| E4EL | 4HBN7M-KEL 460/3/60 VAC with control enclosure, 10’ pendant—red enamel finish | 3125 | $18,555.00 |
| E4ELX | 4HBN7MX-KEL 460/3/60 VAC with control enclosure, 10’ pendant—epoxy gray finish | 3125 | $21,199.00 |
| E4ELX5 | 4HBN7MX5-KEL 460/3/60 VAC with control enclosure, 10’ pendant—epoxy safety yellow finish | 3125 | $21,199.00 |
Limit Switch Ready Winch Options
NOTE: Limit switch winch option requires purchase of Limit Switch and Headache Ball (sold separately)
Limit Switch Electric
Swivel Hook with Safety Latch and Split pin
Headache Ball
5FT100 Series Crane Accessories
| MODEL | DESCRIPTION | WEIGHT (LBS) | PRICE |
| 5FT100LS-EL-TPL | two part line limit switch electric | 5 | $2,467.00 |
| 5FT100TPL | Yellow crane block for two part line - Swivel hook with safety latch and split pin | 150 | $6,998.00 |
| 5FT100LS-EL | two part line limit switch kit | 20 | $3,112.00 |
| HB30-44-63 | red fits 7/16-5/8 rope | 32 | $527.00 |
| HB30S-44-63 | stainless steel fits 7/16-5/8 rope | 32 | $796.00 |
| HB30X-44-63 | gray epoxy fits 7/16-5/8 rope | 32 | $591.00 |
| HB30X5-44-63 | yellow epoxy fits 7/16-5/8 rope | 32 | $591.00 |
