Gravity Roller Spurs are used to transfer products from one conveying line to another. They can be used in merging or diverging applications. Ideally used where numerous lines must transfer onto a main conveyor line, from work stations or other similar operations.
4 Widths
Powder Painted Steel or Aluminum Frames
Right & Left Hand Units
Gravity Hooks & Bolts on One End

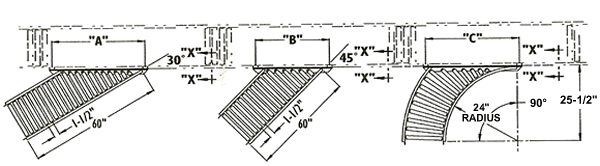

30°, 45°, & 90° Spurs Available
SEE BELOW FOR SUPPORTS
For Conveyor Channel SIZE "A"
Order by Mounting Bracket No.
Drawing Number
2-1/2" x 12 Ga.
K-1
G-571-1
3-1/2" x 10 Ga.
K-2
G-571-2
6-1/2" x 12 Ga.
K-4
G-571-4
LOAD CAPACITY CHART
Frame Material
Support Centers
Frame Capacity (Lbs.)
Roller Capacity (Lbs.)
Maximum Distributed Live Load Per Foot
Maximum Load Per Wheel
Steel
5'
250
65
10'
31
Aluminum
5'
83
45
10'
10
STANDARD SPECIFICATIONS
WIDTHS–12 in., 15 in., 18 in., & 24 in. overall.
SPUR ANGLE- 30°, 45°, 90° right or left hand applications, specify.
FRAME–2-1/2 in. deep x 1 in. flange x 12 ga. powder painted formed steel or 1/8 in. heat-treated aluminum channel with bolt-in cross members.
ROLLERS–1-3/8 in. dia. x 18 ga. galvanized steel tubing. Spring loaded axle allows roller to be easily removed or inserted.
COUPLINGS–Hooks and bolts on both end, spur angle on opposite end. Mounting bracket variable, specify.
AXLES–1/4 in. dia. round
CAPACITY–Same per foot capacity as straight sections. See load capacity chart above.
Order Online
Click the button of the item you wish to purchase.
Adjustable Tripod Stands are used with straight or curved sections of gravity skatewheel and 1-3/8 in. dia. roller conveyor. Optional leg angles can be supplied to a fasten stand to floor.
4 Widths
Portable applications
Easily adjusted
CAPACITY DATA:
350 lbs. with 180 in./lbs. of torque on locking screw. (No Shock Loading).
Order Online
Click the button of the item you wish to purchase.
Conveyor, Conveyor Supports, Gravity Conveyor, Gravity Roller Conveyors, Heavy Duty Roller Conveyor, Roller Conveyors, Tripod, Conveyors, and Steel Roller Conveyor from your source for material handling equipment.
4 Widths
