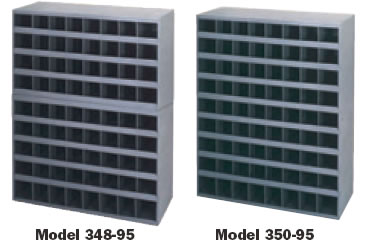

9" DEEP PARTS & ACCESSORIES BINS
• All-welded, prime cold-rolled steel
• Fully hemmed 1-1/8” bin fronts to hold labels and retain parts
• Roll-formed sides for increased strength and stability
• Modular with all other 9” deep bins
• Mounting holes are located in both the top and bottom
• Optional base available (see bottom of page)
• Ships fully assembled
• Durable, gray, powder coat finish
Ships UPS
*All 9" deep models ship UPS with the exception of Model 350-95
BIN ACCESSORIES
Hinged Door Sets
• Prime cold-rolled steel
• Allows secure storage of parts
• Helps keep contents free from dust and dirt
• Full length piano hinges eliminate sagging
• Pad-lock hasp included (pad-lock not provided)
• Ships separately and attach easily to bins
using sheet metal screws or pop rivets
(fasteners not provided)
• Durable, gray, powder coat finish
Bin Bases
• Prime cold-rolled steel
• Fits all 12” & 9” x 33-3/4” Parts Bins
• Raises bins 5-3/4” above the floor
• Legs attach easily using fasteners provided
• Durable, gray, powder coat finish
Model 379-95
Bin Topper
• Prime cold-rolled steel
• Fits all 12” x 33-3/4” Parts Bins
• Keeps top of bin free of clutter
• Durable, gray, powder coat finish
Bin Topper with Aerosol Compartments Storage
• Prime cold-rolled steel
• Modular with most 12” bins and drawers
• Keeps top of bin free of clutter
• Holds standard sized aerosol cans
• Pre-installed threaded nutserts for easy
mounting
• Accommodates 17 standard 12 oz. cans
• Durable, textured, gray powder coat finish
PRICING FOR 9" DEEP PARTS BINS AND ACCESSORIES
| Model No. | Overall Dim: WxDxH (in.) | Total Openings | Bin Dim: WxDxH (in) | Carton | Ship Wt. | Price |
| 344-95 | 33-13/16 x 8-1/2 x 19-1/4 | 32 | 3-7/8 x 8-1/2 x 4-1/2 | 1 | 32 lbs. | $213.20 |
| 349-95 | 33-13/16 x 8-1/2 x 22-1/4 | 40 | (4) 4-5/8 x 8-1/2 x 5-1/16 (6) 4-5/8 x 8-1/2 x 4 (12) 3-7/8 x 8-1/2 x 5-1/16 (18) 3-4/8 x 8-1/2 x 4 |
1 | 37 lbs. | $226.21 |
| 350-95** | 33-13/16 x 8-1/2 x 42 | 72 | 3-7/8 x 8-1/2 x 4-1/2 | 1 | 59 lbs. | $340.91 |
| 393-95 | 33-13/16 x 8-1/2 x 19-1/4 | 8 | 8 x 8-1/2 x 9-13/16 | 1 | 36 lbs. | $152.06 |
| 394-95 | 33-13/16 x 8-1/2 x 22-1/4 | 20 | (4) 8-5/16 x 8-1/2 x 5-1/16 (4) 8 x 8-1/2 x 5-1/16 (6) 8-5/16 x 8-1/2 x 4 (6) 8 x 8-1/2 x 4 |
1 | 33 lbs. | $167.26 |
| Hinged Door Sets |
|||||
| Model No. | Overall Dim: WxDxH (in.) | Fits models | Carton | Ship Wt. | Price |
| 365-95 | 32-7/16 x 3/4 x 41 | 348, 350, 351, 360, 361, 363, 397, 398, 399 | 1 set | 22 lbs. | $149.42 |
| Bin Bases | |||||
| 364-95 5.75/LEG | 34-1/16 x 12-3/16 x 5-11/16 | 329, 330, 351, 353, 354, 356, 357, 359 , 360, 361, 363, 396, 397, 398, 399, 725, 730, 735, 740, 745 |
1 | 14 lbs. | $94.58 |
| 382-95 5.75/LEG | 34-1/8 x 9-1/4 x 5-11/16 | 344, 349, 350, 393, 394 | 1 | 12 lbs. | $117.14 |
| Bin Topper | |||||
| 379-95 | 33-3/4 x 11-15/16 x 8-1/2 | 329, 330, 351, 353, 354, 356, 357, 359, 360, 361, 363, 396, 397, 398, 399, 725, 730, 735, 740, 745 |
1 | 14 lbs. | $96.90 |
| Bin Topper with Aerosol Compartments Storage | |||||
| 479-17C-95 | 33-11/16 x 12 x 8-1/2 | 329, 330, 351, 353, 354, 356, 357, 359, 360, 361, 363, 396, 397, 398, 399, 725, 730, 735, 740, 745 |
Recessed | 365 lbs. | $114.48 |
**Units must ship by truck due to UPS ground size restrictions
Bases & Doors Quantity Minimum is 25.
