12” DEEP PARTS BINS WITH SLOPE SHELF DESIGN & ACCESSORIES
• All-welded, prime cold-rolled steel
• Fully hemmed 1-1/8” bin fronts to hold labels and
retain parts
• Roll-formed sides for increased strength and stability
• Sloped shelves for easy removal of contents
• Modular with most 12” deep bins and drawer cabinets;
mounting holes are located on both the top and bottom
• Optional doors and base available for most models
(see below)
• Ships fully assembled
• Durable, gray, powder coat finish
Bin accessories
Hinged Door Sets
• Prime cold-rolled steel
• Allows secure storage of parts
• Helps keep contents free from dust and
dirt
• Full length piano hinges eliminate
sagging
• Pad-lock hasp included (pad-lock not
provided)
• Ships separately and attach easily to bins
using sheet metal screws or pop rivets
(fasteners not provided)
• Durable, gray, powder coat finish
Bin Bases
• Prime cold-rolled steel
• Fits all 12” & 9” x 33-3/4” Parts Bins
• Raises bins 5-3/4” above the floor
• Legs attach easily using fasteners
provided
• Durable, gray, powder coat finish
Model 379-95
Bin Topper
• Prime cold-rolled steel
• Fits all 12” x 33-3/4” Parts Bins
Bin Bases with Aerosol Compartments Storage
• Prime cold-rolled steel
• Modular with most 12” bins and drawers
• Keeps top of bin free of clutter
• Holds standard sized aerosol cans
• Pre-installed threaded nutserts for easy
mounting
• Accommodates 17 standard 12 oz. cans
• Durable, textured, gray powder coat finish

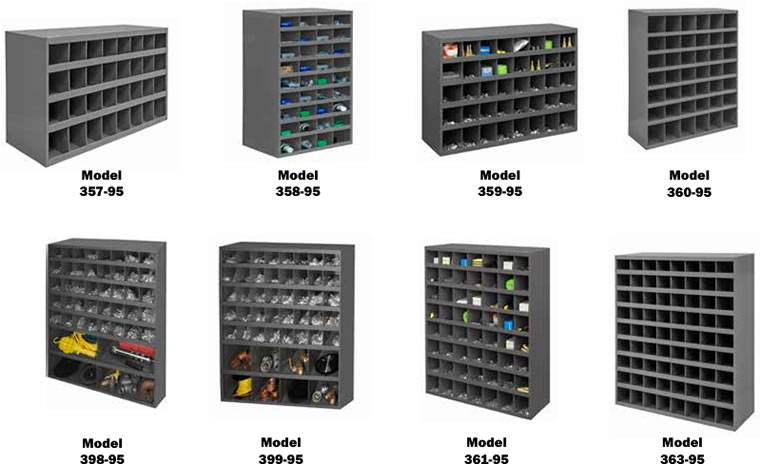

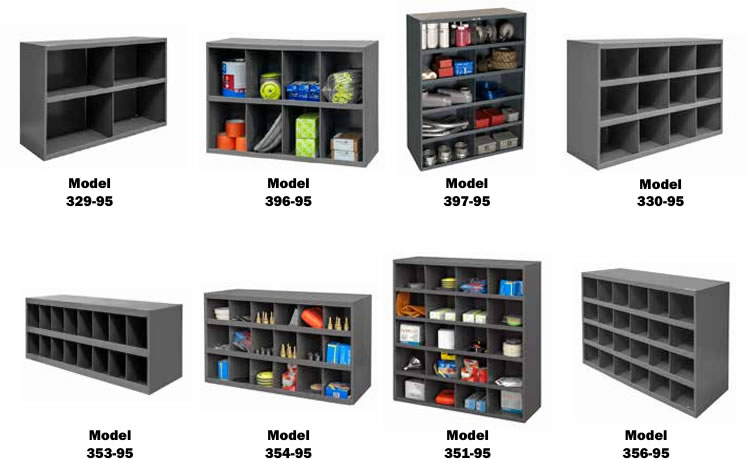

PRICING FOR 12" DEEP PART BINS & ACCESSORIES
| Model No. | Dim: WxDxH | No. Bins | Bin Dimensions: WxDxH | Ship Wt. |
Carton Pk. |
Price |
| 329-95 | 33-3/4" x 12" x 23-7/8" | 4 | 16-3/4" x 11-7/8" x 11-7/8" | 40 lbs.* | 1 |
$183.52
|
| 331-95 | 33-13/16 x 11-15/16 x 24 | 6 | 16-3/8 x 11-15/16 x 11-15/16 | 28 lbs.* | 1 |
$195.24
|
| 396-95 | 33-3/4" x 12" x 23-7/8" | 8 | 8-1/4" x 11-7/8" x 10" | 24 lbs.* | 1 |
$191.30
|
| 397-95** | 33-3/4" x 12" x 42" | 10 | 16-1/4" x 11-7/8" x 7-1/4" | 37 lbs. | 1 |
$284.34
|
| 330-95 | 33-3/4" x 12" x 23-7/8" | 12 | 8" x 11-7/8" x 6-5/8" | 36 lbs.* | 1 |
$184.72
|
| 353-95 | 33-3/4" x 12" x 11-1/2" | 16 | 4" x 11-7/8" x 5-1/8" | 25 lbs.* | 1 |
$137.36
|
| 354-95 | 33-3/4" x 12" x 19-1/4" | 18 | 5-3/8" x 11-7/8" x 6-3/8" | 38 lbs.* | 1 |
$199.83
|
| 351-95** | 33-3/4" x 12" x 42" | 20 | 8" x 11-7/8" x 8-1/2" | 55 lbs. | 1 |
$303.34
|
| 357-95 | 33-3/4" x 12" x 19-1/4" | 32 | 4" x 11-7/8" x 4-1/2" | 41 lbs.* | 1 |
$208.79
|
| 358-95 | 17-7/8" x 12" x 42" | 36 | 4" x 11-7/8" x 4-1/2" | 50 lbs. | 1 |
$237.57
|
| 359-95 | 33-3/4" x 12" x 23-7/8" | 40 | 4" x 11-7/8" x 4-1/2" | 50 lbs.* | 1 |
$236.10
|
| 360-95 | 33-3/4" x 12" x 42" | 42 | 5-3/8" x 11-7/8" x 5-1/2" | 71 lbs. | 1 |
$340.05
|
| 398-95** | 33-3/4" x 12" x 42" | 44 | 40 - 4" x 11-7/8" x 4-1/2" | 58 lbs. | 1 |
$378.77
|
| 4 - 16.25" x 11-7/8" x 7" | ||||||
| 399-95** | 33-3/4" x 12" x 42" | 48 | 40 - 4" x 11-7/8" x 4-1/2" | 60 lbs. | 1 |
$389.39
|
| 8 - 8" x 11-7/8" x 7-3/4" | ||||||
| 361-95** | 33-3/4" x 12" x 42" | 56 | 4-7/8" x 11-7/8" x 5-1/8" | 75 lbs. | 1 |
$366.58
|
| 363-95** | 33-3/4" x 12" x 42" | 72 | 4" x 11-7/8" x 4-1/2" | 80 lbs. | 1 |
$364.91
|
*Ships
**Units must ship by truck due to UPS ground size restrictions
| Model No. | Overall Dim: WxDxH (in) | Fits Models | Carton | Ship Wt. (lbs.) | Price |
| Hinged Door Sets | |||||
| 365-95 | 32-7/16 x 3/4 x 41 | 348, 350, 351, 360, 361, 363, 397, 398, 399 |
1 set | 22 | $149.42 |
| Bin Bases | |||||
| 364-95 5.75/LEG | 34-1/16 x 12-3/16 x 5-11/16 | 329, 330, 351, 353, 354, 356, 357, 359 , 360, 361, 363, 396, 397, 398, 399, 725, 730, 735, 740, 745 |
1 | 14 | $94.58 |
| 382-95 5.75/LEG | 34-1/8 x 9-1/4 x 5-11/16 | 344, 349, 350, 393, 394 | 1 | 12 | $117.14 |
| Bin Topper | |||||
| 379-95 | 33-3/4 x 11-15/16 x 8-1/2 | 329, 330, 351, 353, 354, 356, 357, 359, 360, 361, 363, 396, 397, 398, 399, 725, 730, 735, 740, 745 |
1 | 14 | $96.90 |
| 479-17C-95 | 33-11/16 x 12 x 8-1/2 | 329, 330, 351, 353, 354, 356, 357, 359, 360, 361, 363, 396, 397, 398, 399, 725, 730, 735, 740, 745 |
Recessed | 365 | $114.48 |
